Full Colour Multi-Level Message Signs

Name: Full Colour Multi-Level Message Signs
Brand: Nortech Control Systems Ltd
SKU: VMS-RGB-10A-T1, VMS-RGB-10A-T2
Availability: InStock

VMS-RGB-10A-T1, VMS-RGB-10A-T2

'Clear, Versatile Parking Guidance'

High intensity, full colour LED sign that is fully compliant with European VMS standard EN12966 offering bright, clear messages indicating available spaces and status messages. The sign can be used in standalone counting solutions with Nortech's NCT100 counting modules, in full Parking Count Management Systems alongside Nortech's NCT200 counting modules and NorParc Count Management Software, and for shared occupancy display with Nortech’s shared occupancy controllers (CPC202 and CPC204).

Request Quote Download Datasheet

Product features & benefits

The VMS-RGB-10A uses low profile LED matrices and are each capable of displaying count values of up to 5 digits with the option to display ‘FULL’ when a count value falls below 1. The display options are set via the counting/control module. Display settings include the display colours and the options to replace the count value with ‘OPEN’ or 'SPACE' when the count value is 1 or more.

Each level display has 10cm high characters and can be viewed at distances of up to 50 metres with a 30° horizontal viewing angle. The luminance of the signs can also be manually adjusted to match ambient light levels. The high intensity setting is ideal for regions with extremely strong sunlight. The default setting provides automatic luminance adjustment using the built-in ambient light sensor.

Depending upon the application, up to eight individual displays can be connected on a single RS485 bus, each displaying a different count value.

There are two VMS-RGB-10A-Tx options available as standard for
housing either 1 or 2 individual count displays.

Benefits

Large 5-digit full colour LED display
Excellent LED optical system meets EN12966 standards and provides high optical performance
Automatic luminance control option
Ideal for application where there is strong sunlight
Very low power consumption
Robust weatherproof aluminium housing (IP65)
Selectable display of count values and/or status messages
Up to 8 VMS’s can be connected to a single counting module
Fully compatible with Nortech count management systems.
Available with one or two individual count displays

Specifications

Electrical

Supply voltage	110-220vac

Environmental

Operating Temp.	-25ºC to +60ºC

Physical

Display type	10mm pitch pixel array - SMD with optical lens. Count values/status messages can be displayed in red, green or amber.
Display Resolution	48 x 12 pixels
LED brightness	Red > 3100 cd/m2 Green > 3720 cd/m2 Yellow > 7400 cd/m2 White > 12400 cd/m2
Viewing angle	B6 (30° horizontally)
Viewing distance	6 to 30 metres
Enclosure	Aluminium & RAL Black 9005 Coating (IP65 rated)
Dimensions (mm)	VMS-RGB-10A-T1: 470 x 1300 x 150 (HxWxD) VMS-RGB-10A-T2: 640 x 1300 x 150 (HxWxD)
Display size (mm)	480 x 120 (~10cm high characters)
Cabling	Fitted with a 5-metre, 2-pair screened cable, 22 AWG and 5-metre power cable
Luminance control	Built-in ambient light sensor

Operational

Display Function	Selectable up to 5-digit count, 'FULL' , 'OPEN' or 'SPACE'. Default setting: positive count values displayed in green, zero and negative values displayed as 'FULL' in red.

Inputs

Count Bus	RS485 bus from a counter module or shared occupancy controller. Delivering up to 4 count values (NCT100, CPC202 or CPC204) or up to 8 count values (NCT200). The count value that is displayed on each sign is determined by a node value assigned to the sign during installation.

Consolidated Floor-by-Floor Parking Availability at Facility Entrances

The VMS-RGB-10A-Tx multi-level signs provide an elegant solution for multi-storey car parks needing to display availability across multiple floors from a single entrance totem. Available in single-level (T1) and dual-level (T2) configurations, these signs consolidate parking information into professional-grade displays that help drivers select optimal floors before entering the structure.

Ideal deployment scenarios include municipal multi-storey facilities, hospital parking structures with separate staff and visitor levels, shopping centre car parks with basement and rooftop sections, and corporate headquarters with allocated floor zones. The vertically-oriented housing design integrates seamlessly with entrance bollards and guidance totems, presenting a unified parking management system that reduces circulation time and driver frustration in busy facilities.

Frequently asked questions

What is the difference between the T1 and T2 models?

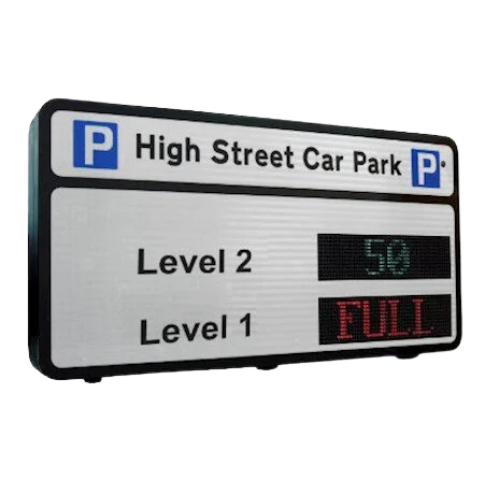

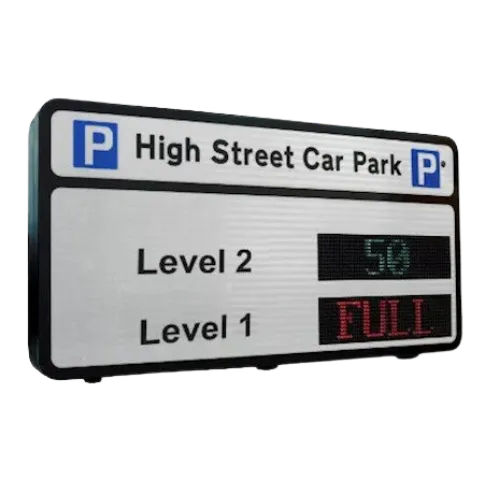

The VMS-RGB-10A-T1 houses one count display (470 x 1300 x 150mm, 20.5kg) while the VMS-RGB-10A-T2 houses two count displays (640 x 1300 x 150mm, 31kg). Both use identical LED technology and feature sets.

Can I use more than two count displays in a single installation?

Yes, the VMS-RGB-10A-STD standard module is available for mounting in third-party totems when more than two displays are required in a single housing location.

What is the viewing distance for these signs?

Each display has 10cm high characters with a 30° horizontal viewing angle, providing clear visibility from 6 to 50 metres—ideal for approach lanes and entrance areas.

How are the signs mounted?

Both T1 and T2 models come fitted with rear mounting strips for post mounting. An optional wall mounting bracket (VMS-RGB-WB-TX) is available for alternative installations.

Can each display show independent count values?

Yes, each individual display receives its own RS485 node address, allowing independent count values from the controller. Up to 8 individual displays can operate on a single RS485 bus.
