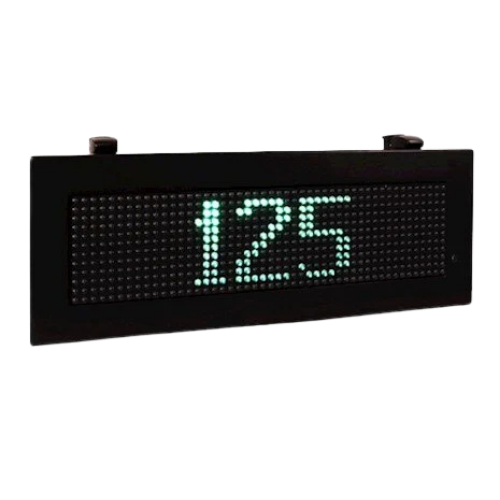

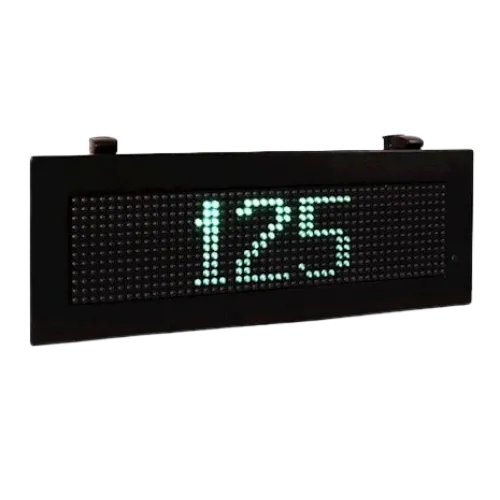

Full Colour Message Sign

Name: Full Colour Message Sign
Brand: Nortech Control Systems Ltd
SKU: VMS-RGB-10A-STD
Availability: InStock

VMS-RGB-10A-STD

'Versatile display suitable for all conditions'

High intensity, full colour LED sign that is fully compliant with European VMS standard EN12966 offering bright, clear messages indicating available spaces and status messages. The sign can be used in standalone counting solutions with Nortech's NCT100 counting modules, in full Parking Count Management Systems alongside Nortech's NCT200 counting modules and NorParc Count Management Software, and for shared occupancy display with Nortech’s shared occupancy controllers (CPC202 and CPC204).

Request Quote Download Datasheet

Product features & benefits

The VMS-RGB-10A uses low profile LED matrices and are each capable of displaying count values of up to 5 digits with the option to display ‘FULL’ when a count value falls below 1. The display options are set via the counting/control module. Display settings include the display colours and the options to replace the count value with ‘OPEN’ or 'SPACE' when the count value is 1 or more.

The sign has 10cm high characters and can be viewed at distances of up to 50 metres with a 30º horizontal viewing angle. The luminance of the signs can also be manually adjusted to match ambient light levels. The high intensity setting is ideal for regions with extremely strong sunlight. The default setting provides automatic luminance adjustment using the built-in ambient light sensor.

Depending upon the application, up to eight signs can be connected on a single RS485 bus, each displaying a different count value.

Benefits

Large 5-digit full colour LED display
Excellent LED optical system meets EN12966 standards and provides high optical performance
Automatic luminance control option
Ideal for application where there is strong sunlight
Very low power consumption
Robust weatherproof aluminium housing (IP65)
Selectable display of count values and/or status messages
Up to 8 VMS’s can be connected to a single counting module
Fully compatible with Nortech count management systems

Specifications

Electrical

Supply voltage	110-220vac

Environmental

Operating Temp.	-25ºC to +60ºC

Physical

Display type	10mm pitch pixel array - SMD with optical lens. Count values/status messages can be displayed in red, green or amber.
Display Resolution	48 x 12 pixels
LED brightness	Red > 3100 cd/m2 Green > 3720 cd/m2 Yellow > 7400 cd/m2 White > 12400 cd/m2
Viewing angle	B6 (30° horizontally)
Viewing distance	6 to 50 metres
Enclosure	Aluminium & RAL Black 9005 Coating (IP65 rated)
Dimensions (mm)	570 x 210 x 150 (W x H x D)
Display size (mm)	480 x 120 (~10cm high characters)
Weight	8Kg
Cabling	Fitted with a 5-metre, 2-pair screened cable, 22 AWG and 5-metre power cable.
Luminance control	Built-in ambient light sensor

Operational

Display Function	Selectable up to 5-digit count, 'FULL' , 'OPEN' or 'SPACE'. Default setting: positive count values displayed in green, zero and negative values displayed as 'FULL' in red.

Inputs

Count Bus	RS485 bus from a counter module or shared occupancy controller. Delivering up to 4 count values (NCT100, CPC202 or CPC204) or up to 8 count values (NCT200). The count value that is displayed on each sign is determined by a node value assigned to the sign during installation.

Clear Space Availability Displays for Professional Parking Environments

The VMS-RGB-10A delivers exceptional visibility for parking facilities requiring clear, professional space availability signage visible from considerable distances. Designed for airport car parks, hospital facilities, sports venues, and large commercial developments, the EN12966-compliant display ensures legibility in all lighting conditions including bright sunlight.

Installation scenarios include entrance totems at multi-storey car parks, wall-mounted displays at floor access points, and freestanding units directing traffic flow through large surface lots. The robust IP65-rated aluminium housing withstands harsh weather conditions while the automatic luminance adjustment ensures optimal visibility whether installed in covered structures or exposed outdoor locations. With 50-metre viewing distance and high-intensity LED technology exceeding 12,400 cd/m² in white, drivers can make informed decisions before committing to parking routes.

Frequently asked questions

What display colours are available?

The sign can display count values and status messages in red, green, amber, yellow, or white. Default configuration shows positive counts in green and 'FULL' status in red for intuitive driver recognition.

How many signs can be connected to a single counting module?

Up to 8 VMS signs can be connected on a single RS485 bus, with each sign assigned a unique node address to display different count values from the controller.

What status messages can the sign display?

Beyond numeric counts, the display can show 'FULL', 'OPEN', or 'SPACE' text messages, automatically triggered when count thresholds are reached.

What power supply is required?

The sign operates on 110-220VAC universal supply voltage. It comes fitted with a 5-metre power cable and 5-metre 2-pair screened data cable for flexible installation positioning.

What mounting options are available?

The VMS-RGB-10A-STD comes with rear mounting strips for post mounting. An optional wall mounting bracket (VMS-RGB-WB-STD) is available for surface-mounted installations.
