Proximity Readers

Nortech’s family of proximity readers supports a wide range of 125kHz reader technologies. We offer a range of attractive housing styles to meet customers' specific needs.

Mullion Mount Proximity Reader

Designed to fit most architectural and interior design settings, with the robust ABS polycarbonate construction th…

› View Details

Wall Switch Proximity Reader

Designed to fit UK standard wall switch back boxes. Suits most architectural and interior design settings, while t…

› View Details

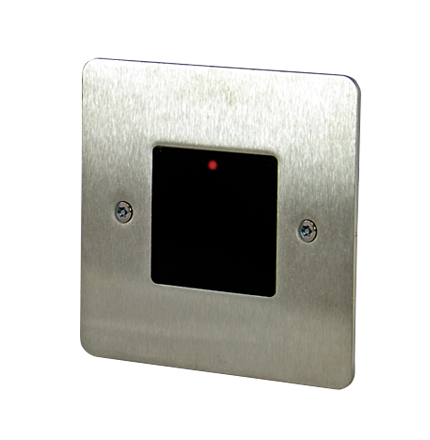

Flush Mount Reader

Designed to fit standard UK wall switch back boxes, whilst its flush-fit stainless steel mounting makes it robust…

› View Details

Slimline Reader

Fits most door mullion and architrave profiles that can be located either indoors or outdoors and are quick and ea…

› View Details

Vandal Resistant Reader

Housed in marine grade stainless steel, weatherproof and vandal resistant. These robust readers can be located eit…

› View Details

Panel-Mount Reader

Specially designed to fit behind standard door entry panels. Supports a wide variety of technologies to match cust…

› View Details

Desktop Proximity Reader

Supports most card reader technologies and software applications.

› View Details

Proximity Readers: Reliable Access Control for Every Application

Proximity readers provide contactless access control by reading encoded data from proximity cards and fobs when presented within range. Nortech's comprehensive proximity reader range supports both 125kHz and 13.56MHz technologies, offering solutions for every installation requirement.

Our portfolio includes mullion-mount, wall switch, slimline, vandal-resistant, panel-mount, and desktop readers, each designed for specific applications and environments. All readers feature robust construction with IP65 or IP66 ratings, ensuring reliable performance in indoor and outdoor settings. The range supports multiple card technologies including EM, DualProx, Multi-ISO, LEGIC, and Mifare, with flexible output formats (Wiegand, Clock & Data, RS232) ensuring compatibility with most access control systems.

Reading ranges vary from 50mm to 100mm depending on the model and card type. Installation flexibility is enhanced through various connection options including pigtail cables, terminal blocks, and fixed cables. Combined with Nortech's access control systems, our proximity readers deliver cost-effective, scalable security solutions.

Comparison Table

Reader Type	Installation	Best For	Read Range	Environment	Key Features
MP1 Mullion	Surface mount on mullions/architraves	Aluminium-framed doors, narrow frames	Up to 100mm	IP65, indoor/outdoor	Slender profile (111×49mm), supports 125kHz & 13.56MHz, multiple colours available
WP1 Wall Switch	Fits standard UK back boxes	Office doors, building entrances	Up to 100mm	IP65, indoor/outdoor	Low profile (90×90mm), supports 125kHz & 13.56MHz, elegant design, custom branding
WP2 Flush Mount	Flush fit in standard back boxes	High-security areas, public spaces	Up to 50mm	IP65 electronics, indoor/outdoor	Stainless steel vandal-resistant, tinted lens, 125kHz only, robust construction
SP1 Slimline	Mullion/architrave profiles	Narrow frames, discreet installations	Up to 80mm	IP66, indoor/outdoor	Ultra-slim (116×40mm), UV-stabilized plastic, 125kHz, separate LED indicators
VP1 Vandal-Resistant	Surface mount	Harsh environments, high-vandalism risk	Up to 50mm	IP66, marine-grade 316 stainless	Maximum durability, weatherproof, 125kHz, tamper-resistant
PP1 Panel-Mount	Behind door entry panels	Integrated door entry systems	Up to 50mm	IP66, indoor/outdoor	Compact (55×55mm), 48mm mounting centres, 125kHz, concealed installation

Frequently asked questions

What proximity card technologies do Nortech readers support?

Nortech readers support widely-used 125kHz technologies including EM4100, EM4102, Temic, Hitag, and DualProx (PAC compatible). For 13.56MHz applications, Multi-ISO models read LEGIC Advant, Mifare, iCLASS, ICODE, and Tag-it 2. Selected models access secure data from Mifare and LEGIC Prime cards. All readers output industry-standard formats (26-bit Wiegand, Clock & Data, RS232) ensuring compatibility with Nortech controllers and most third-party access control systems.

Which proximity reader should I choose for outdoor installations?

For harsh environments or high-vandalism areas, choose the VP1 with marine-grade 316 stainless steel and IP66 rating. The WP2 Flush Mount offers vandal resistance with stainless steel mounting and IP65 encapsulated electronics. For standard outdoor applications, the MP1 Mullion, WP1 Wall Switch, or SP1 Slimline (all IP65-IP66 rated, ABS/UV-stabilized construction) provide reliable performance. All outdoor readers operate from -20°C to 50°C ambient temperature.

What's the difference between wall switch and mullion style proximity readers?

Wall switch readers (WP1/WP2) fit standard UK back boxes measuring 90×90mm, replacing traditional wall switches for neat, architectural installations. Mullion readers (MP1) feature slender vertical profiles (111×49mm) designed for door mullions and architrave mounting where space is limited. Both offer similar technology support and read ranges, but mullion readers suit narrow frames and glass doors while wall switch styles suit building entrances and office doors.

Can I use Nortech proximity readers with my existing access control system?

Yes, all Nortech readers integrate with third-party systems through industry-standard interfaces. Wiegand output (26-bit, 32-bit, 34-bit, or 44-bit) ensures compatibility with virtually all control panels globally. Clock & Data and RS232 options provide additional flexibility. Connection choices include pigtail cables, terminal blocks, or fixed cables. Readers support multiple card technologies simultaneously, enabling gradual migration from legacy systems without immediate credential replacement.

What are desktop proximity readers used for?

Desktop readers (DT1/DT2) connect via USB to enrol cards directly into access control software, databases, or spreadsheets. They eliminate manual data entry during credential management, badge production, visitor enrollment, and system commissioning. Card data outputs as keyboard input with configurable formatting and selectable terminating characters. The DT1 includes integral readers for most technologies; the DT2 accommodates third-party readers. No driver installation required.
