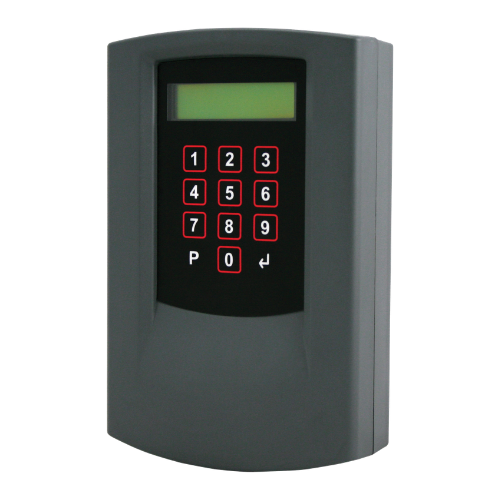

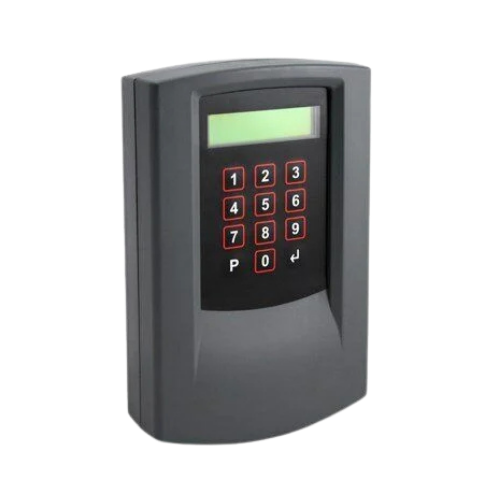

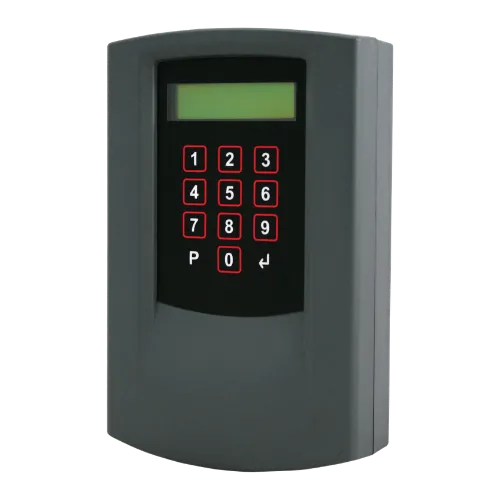

NCT100 Standalone Counter Module

Name: NCT100 Standalone Counter Module
Brand: Nortech Control Systems Ltd
SKU: NCT100
Availability: InStock

NCT100

'Versatile Standalone Counting'

A standalone four-channel counting system providing up to 4 individual counters.

Request Quote Download Datasheet

Product features & benefits

The NCT100 standalone counter can be combined with one or more Variable Message Signs to provide information of space availability to staff and visitors.

Alarm outputs can be associated with each counter to indicate that the count has reached a predetermined value. These can be used to operate Open/Full signs, traffic lights, barrier controls or other devices that require an input based on a count value.

Benefits

Simple, cost effective means of providing count management for a wide range of applications and any size of car park
Count values are stored in non-volatile memory to guard against temporary loss of power
Extremely flexible - a single module can provide up to 4 counters or one counter with up to 4 increment and 4 decrement inputs
Powerful VMS driving capability. Can provide up to 4 count outputs

Specifications

electrical

Supply Voltage	12 - 24V DC
Current Requirement	100 mA quiescent, up to 230mA while all alarms are active

physical

Display	2 lines x 16 character LCD
Keypad	12 button membrane. Keys 0 to 9 plus ‘Program’ and ‘Enter’
Dimensions (mm)	190 x 130 x 43 (H x W x D)
Cable Termination	Plug-in screw terminal blocks

environmental

Operating Temperature	0oC to 40oC
Storage Temperature	-20oC to 70oC
Relative Humidity	95% non-condensing

capacity

Counting capacity	4 counters, each counting up to 32700

inputs

Increment/decrement	4 counter increment inputs and 4 counter decrement inputs (clean contact pulse)
Master count reset	Single input to set all counters to their reset value (clean contact pulse)

outputs

Alarm outputs	2 independent voltage free changeover relays (2A, 30V DC) plus 2 open collector outputs
Pre-alarm outputs	4 open collector outputs
Variable Message Signs	RS485 communications port supporting 4 node addresses (4 individual count values)

Autonomous Vehicle and People Counting for Independent Parking Zones

The NCT100 provides a complete standalone counting solution for sites that need reliable space management without the complexity of networked software. Ideal for single-level car parks, private parking areas, loading bays, warehouse yards and smaller facilities, the compact module mounts easily in roadside cabinets or equipment enclosures and operates autonomously once configured.

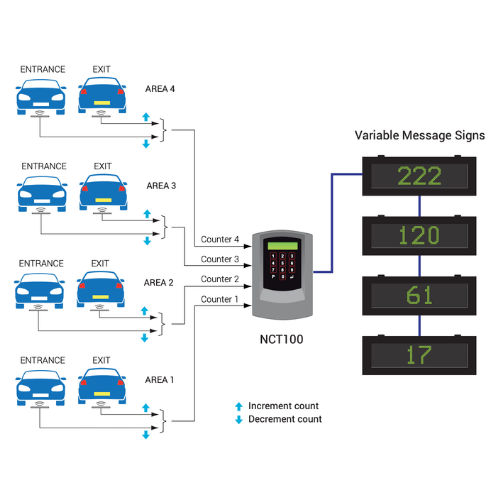

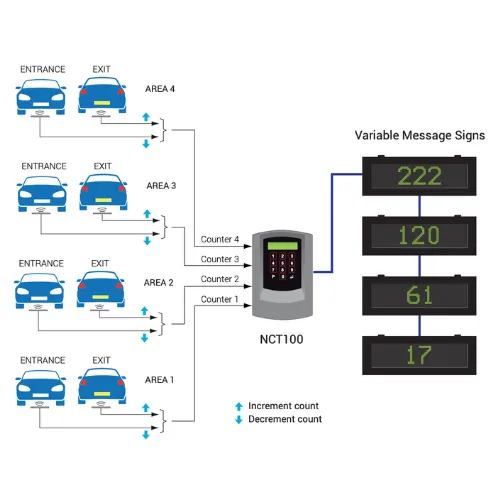

With four independent counting channels, a single NCT100 can monitor multiple entry and exit points or track occupancy across several discrete areas simultaneously. The built-in keypad and LCD display allow direct programming without requiring a PC, while alarm outputs trigger Space/Full signs, traffic lights or barrier controls when counts reach preset thresholds. Count values are stored in non-volatile memory, ensuring continuity through power interruptions, and the RS485 port drives up to four variable message signs to keep drivers informed of availability.

Frequently asked questions

What is the counting capacity of the NCT100?

Each of the four counters can record values between -32,500 and +32,500, with the ability to count up or down independently based on configuration.

Can the NCT100 drive variable message signs?

Yes, the RS485 communications port supports up to 4 individually addressable variable message signs displaying count values or status messages.

How do I program the NCT100?

Programming is done directly using the 12-button membrane keypad and 2-line LCD display on the front panel—no PC or special software is required.

What happens if power is lost?

Count values are stored in non-volatile memory, so counts are preserved through power interruptions and restored when power returns.

Can the NCT100 automatically reset counts daily?

Yes, you can set a time when all counters will automatically reset to their predetermined values each day, or trigger a manual reset via the dedicated reset input.
