DeltaQuest with PSU in Plastic Enclosure

Name: DeltaQuest with PSU in Plastic Enclosure
Brand: Nortech Control Systems Ltd
SKU: DQ-S2-PH
Availability: InStock

DQ-S2-PH

'Versatility to support access control and membership applications'

The DQ-S2-PH DeltaQuest Universal OEM 2-Door Access Controller is supplied in an attractive housing with integral 12V DC, 3A power supply and intelligent fuse panel. It provides I/O support for PC-based access control or membership software that needs to manage access points. Up to 32 access points that use ID devices such as card readers and keypads can be supported via a single USB port or a TCP/IP network connection.

Request Quote Download Datasheet

Product features & benefits

Each reader control module is provided in an attractive wall mount cabinet and can manage up to two ID devices and operate their associated barriers or turnstiles via robust output relays.

Each DeltaQuest module collects ID data from the attached card readers or keypads and sends it together with the identity of the reader/keypad to the third-party software via the master module. If the software identifies that the ID data is valid, it is able to permit access to the user through the barrier or turnstile by sending a simple command to the corresponding DeltaQuest module via the master.

The DeltaQuest is ideal for use in the leisure industry when combined with third-party membership software.

The DeltaQuest is compatible with all Nortech’s reader technologies and can support many third-party readers and keypads.

Benefits

Supports most reader technologies and output formats
Up to 32 access points can be managed via a single USB port or TCP/IP network connection on the PC
Supports PINs of up to 15 digits from a connected keypad
Simplifies software development by using a simple command structure
Simple, cost-effective installation with no local settings such as DIP switches or jumpers required
Fully configurable via user-friendly software
Compatible with several third-party database/membership management systems
Each reader interface supports Free Exit and an auxiliary output to control card capture, DVR, etc.
Supplied in attractive housing with integral 12V DC, 3A power supply
Intelligent fuse panel provides managed 12V DC power to access devices with power supply monitoring

Specifications

Electrical

Supply Voltage	90 to 264VAC
Frequency Range	47 to 63Hz
Max. Current draw	1.6A/115VAC 1A/230VAC
Reader supply	12V DC or 5V DC (200 mA max. @ 12V)

Physical

Dimensions (mm)	312 x 312 x 100 (H x W x D)
Cable Termination	USB: Mini USB type-B socket TCP/IP: RJ45 socket Other: Plug-in terminal blocks
Output relays	Voltage free changeover relay per reader, rated at 2A @ 30V DC. Variable output times driven by software
Request to Exit	Ground activated input per reader, configurable operation time from 0.5 to 10 seconds
Auxiliary Outputs	Open-collector output per reader

Cabling Requirements

PC connection	USB: USB 2.0 A plug to Mini type-B plug lead, or TCP/IP - follow standard data networking recommendations
Master/Slave RS485	Cabling Belden 9729 or equivalent (1200m max)
Reader Cabling	Belden 9536 or equivalent (25m max for RS232 reader, 100m max for C&D or Wiegand reader)

Environmental

Operating temp.	0°C to 50°C
Storage temp.	-20°C to 70°C
Relative humidity	95% non-condensing

Complete Turnkey Access Control for Membership Venues

The DQ-S2-PH provides a ready-to-install solution for leisure operators and system integrators who require rapid deployment without sourcing separate power supplies or enclosures.

The wall-mounted housing with integrated 12V DC 3A power supply and intelligent fuse panel makes it ideal for fitness centres managing turnstile entry points, swimming pools controlling changing room access, and social clubs overseeing multiple bar or function room entrances.

Venues running Gladstone, Legend, or similar membership platforms can connect the DeltaQuest directly to their existing software via USB or TCP/IP, enabling real-time member validation at each access point. The 312mm × 312mm enclosure fits standard UK electrical mounting points and provides clean cable termination for professional installations.

For multi-site leisure operators or local authority sports facilities, the ability to network up to 32 DeltaQuest units from a single PC connection simplifies central management while keeping each venue's access points responsive even during peak usage periods.

Frequently asked questions

What is included in the DQ-S2-PH package?

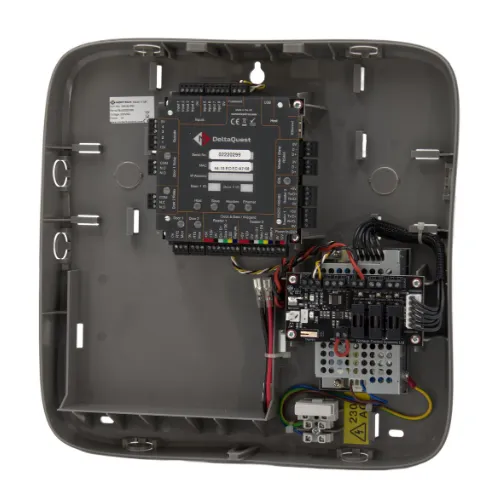

The DQ-S2-PH includes the DeltaQuest 2-reader interface PCB, a 312mm × 312mm plastic wall-mount enclosure, an integrated 12V DC 3A power supply unit, and an intelligent fuse panel for protected power distribution to readers.

What mains voltage does the enclosure version accept?

The integrated power supply accepts 90 to 264VAC at 47 to 63Hz, drawing a maximum of 1.6A at 115VAC or 1A at 230VAC. This makes it suitable for installations in the UK, Europe, and international markets.

How does the intelligent fuse panel work?

The fuse panel distributes 12V DC power to connected access devices such as card readers, with individual fused outputs and power supply monitoring. This protects readers from overcurrent and enables diagnostic visibility of power issues.

Can I upgrade from the PCB version to the enclosure version?

Yes, the DQ-S2-PX PCB can be installed inside the DQ-S2-PH enclosure or sourced separately. Many integrators purchase PCB-only units for custom installations and enclosure versions for standard wall-mount deployments.

What is the maximum cable length between DeltaQuest units?

RS485 communication between master and slave DeltaQuest modules supports cable runs up to 1200m using Belden 9729 or equivalent twisted-pair cabling. Reader cables can extend 25m for RS232 or 100m for Wiegand/C&D formats.
