ANPR Stainless Steel Posts

Name: ANPR Stainless Steel Posts
Brand: Nortech Control Systems Ltd
SKU: SSP-ANPR / SSDP-ANPR
Availability: InStock

SSP-ANPR / SSDP-ANPR

'Elegant and Robust Housings for ANPR and Traffic Signals'

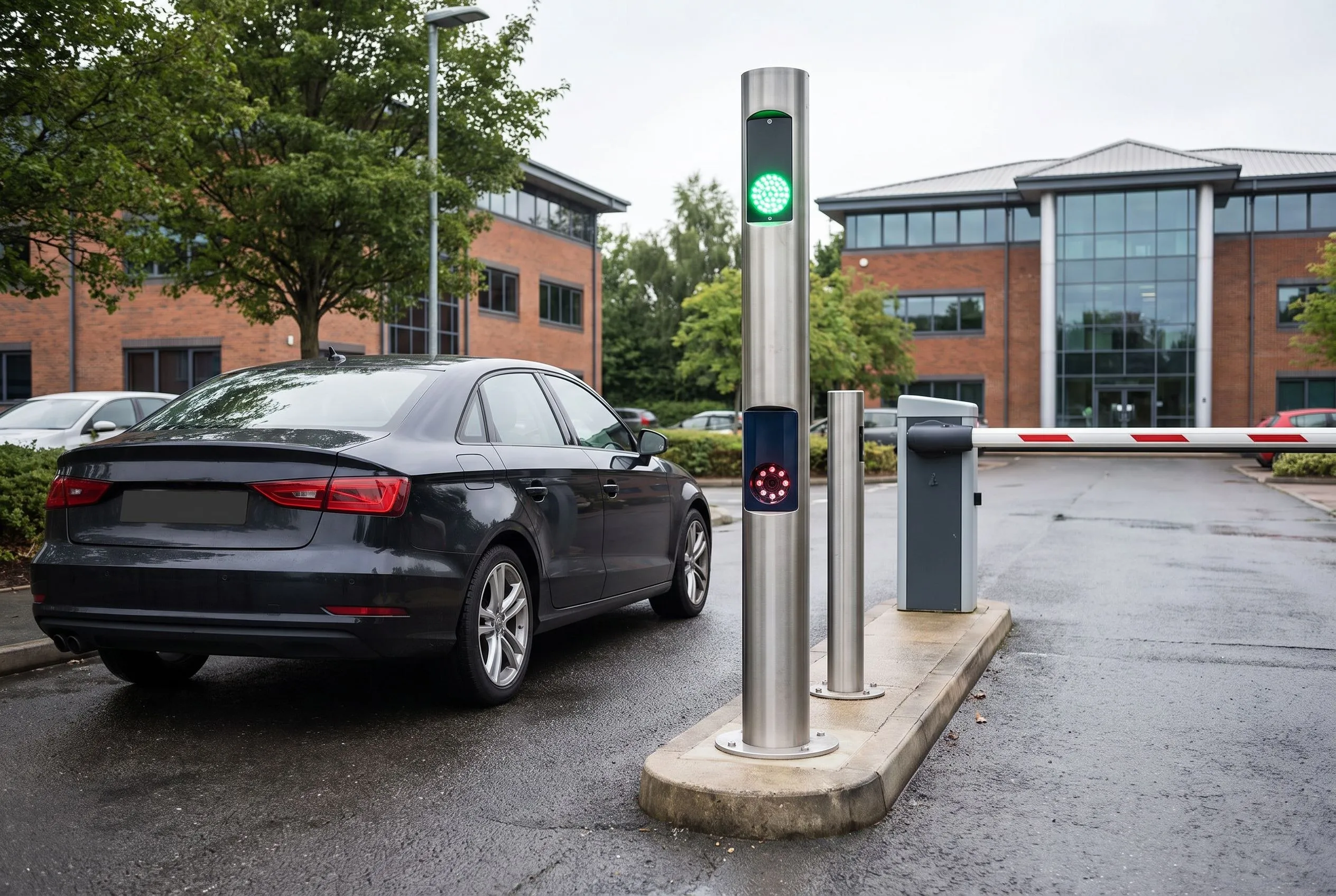

The SSP-ANPR and SSDP-ANPR stainless steel posts are each designed to house the Nedap ANPR camera in an attractive roadside post/bollard. The SSDP-ANPR is a dual height post that includes integral traffic signals.

Request Quote Download Datasheet

Product features & benefits

In both stainless steel housing options, the ANPR camera is mounted at the ideal height for reading standard number plates. It is contained within the body of the post with no restriction to either the lens or IR lighting.

Once fitted, the rear of the camera can be accessed via a service panel.

The traffic signal mounted at the top of the SSDP-ANPR may be controlled directly from the access controller or barrier logic using individual 24V control signals for each of the red and green LED clusters.

Benefits

Attractive brushed stainless steel housing
Ideal camera height for standard licence plates
Integral red and green LED traffic lights (SSDP-ANPR)
Robust bollard style housing with 300mm base plate
Support all Nedap ANPR cameras

Specifications

Single Height Post

Dimensions (mm)	Total height: 858; Post diameter: 168; baseplate diameter: 300
Weight	Approx. 12.5 kg
Material	Stainless steel AISA 316L
Wall thickness	3mm

Dual Height Post

Dimensions (mm)	Total height: 1508; Post diameter: 168; baseplate diameter: 300
Weight	Approx. 21 kg
Material	Stainless steel AISA 316L
Wall thickness	3mm

LED Lights

Diameter	90mm
Voltage	24 Vdc/ac
Viewing angle	30°
Brightness	5500 mcd per LED red x 40 pcs. each cluster 4900 mcd per LED green x 40 pcs. each cluster

Professional-Grade Mounting Solutions for Vehicle Entrance Installations

The SSP-ANPR and SSDP-ANPR stainless steel posts provide elegant, purpose-built housing for Nedap ANPR cameras at vehicle entrances where aesthetics matter as much as functionality. Designed for corporate headquarters, premium residential developments, retail parks, and hospitality venues, these brushed stainless steel bollards complement modern architectural environments whilst ensuring optimal camera positioning for reliable plate recognition.

The single-height SSP-ANPR bollard positions the camera at the ideal 585mm height for reading standard number plates, whilst the dual-height SSDP-ANPR incorporates integrated red and green LED traffic signals for controlled lane management. Both variants feature robust 300mm base plates suitable for surface mounting on concrete or tarmac, with rear service panels enabling easy camera maintenance without disturbing the installation. The marine-grade 316L stainless steel construction provides lasting corrosion resistance for outdoor installations exposed to weather, road salt, and vehicle emissions.

Frequently asked questions

What is the difference between the SSP-ANPR and SSDP-ANPR models?

The SSP-ANPR is a single-height bollard (858mm) for camera mounting only, whilst the SSDP-ANPR is a dual-height post (1508mm) that includes integrated red and green LED traffic signals at the top.

What ANPR cameras are compatible with these posts?

The posts support all Nedap ANPR cameras including the ANPR Lumo, ANPR Access V2 Short-Range, and ANPR Access V2 Long-Range models.

How are the traffic signals on the SSDP-ANPR controlled?

The LED traffic signals operate on 24V DC/AC and can be controlled directly from your access controller or barrier logic using individual control signals for the red and green LED clusters.

What material are the posts made from?

Both posts are manufactured from AISI 316L marine-grade stainless steel with 3mm wall thickness, featuring an attractive brushed finish suitable for premium installations.

What are the mounting requirements?

Both models feature a 300mm diameter base plate for surface mounting. The single-height post weighs approximately 12.5kg and the dual-height post weighs approximately 21kg.
