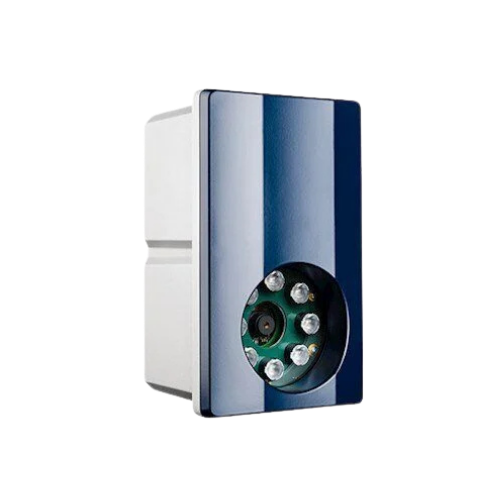

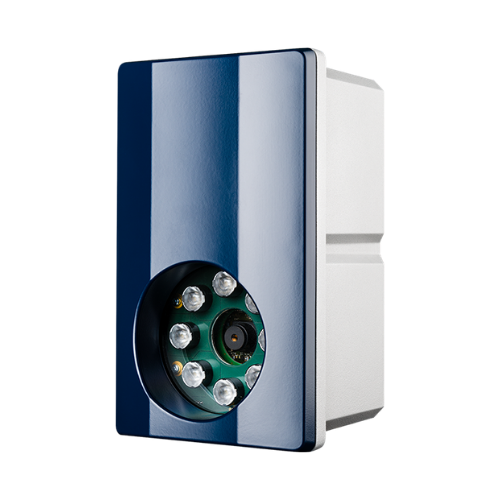

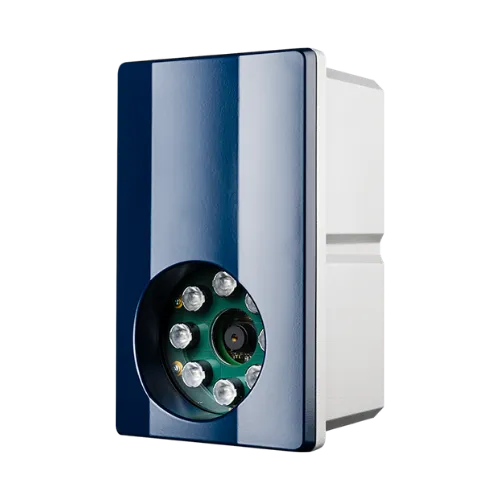

Nedap ANPR Lumo for Vehicle Access Control

Name: Nedap ANPR Lumo for Vehicle Access Control
Brand: Nedap
SKU: 9986138
Availability: InStock

9986138

'Advanced camera for efficient recognition of vehicles'

The ANPR Lumo is an all-in-one number plate camera, including embedded software, analyser and IR illuminator.

Request Quote Download Datasheet

Product features & benefits

With a read range of 2 to 10 metres, the Lumo advanced camera ensures efficient recognition of vehicles. Deep learning algorithms makes it possible to accurately capture numbers under harsh conditions and read plates with different font formats.
Typical applications include vehicle access control, automatic toll collection, free flow applications at parking facilities or other situations where it is not desirable to issue RFID tags. If vehicles need to be granted access temporarily or incidentally, the ANPR Lumo is the perfect solution.
The ANPR Lumo covers a comprehensive list of countries around the world, supporting many types of IR-reflective number plates.
Stand-alone Solution
The ANPR Lumo offers built-in vehicle access control features. The option to configure time-based access control lists (white list, black list, ignore list, etc.) in the web based software enables the camera to be used as a stand-alone solution.
User-friendly configuration
The web-based software enables easy configuration of the ANPR Lumo. It supports the configuration of output messages as RS485, Wiegand or Ethernet. In addition, digital input/output, operating region, network settings, etc. can be defined.

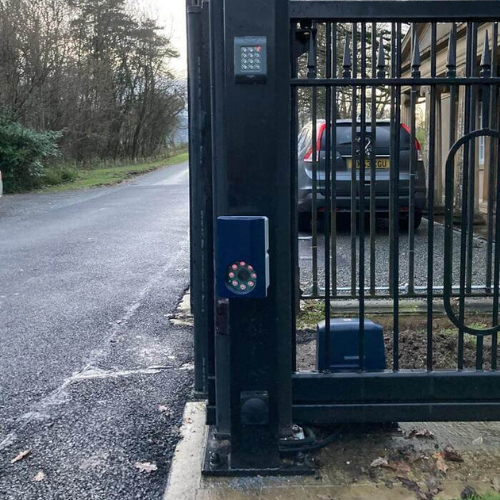

Easy installation
A mounting bracket is included as standard with the ANPR Lumo to ensure easy installation.

Benefits

All-in-one license plate camera
Barrier-controlled and free-flow applications
Captures number plates from 2 - 10 metres
Object speeds (freerun) up to 130 km/h
Easy user configuration
Libraries from countries worldwide available
Power over Ethernet (PoE)
Built-in Wiegand modes

Specifications

Dimensions (mm)	221 x 131 x 126
Weight	2.5 kg
Housing	Cover ABS, Housing Die-casting Silafont 3
Colour	Cover RAL5011, housing RAL9006
Protection	IP65 (approx. NEMA4x)
Operating temperature	-20 to +55°C
Storage temperature	-30 to +55°C
Operating humidity	10% - 93% relative humidity, non-condensing
Power	24 VDC +10% linear supply recommended
Power consumption	8w
Operating Distance	2 to 10 metres
Operating Width	Up to 3.5 metres
Object speed	Free run: Up to 130 km/h (depending upon camera installation, settings and external conditions) Triggered: Up to 250 km/h
Number plate types	Infrared-reflective number plates
Camera optics	12 mm
Image sensing resolution	1/1.8” CMOS sensor, 1280 x 1024 pixel, SXGA
Camera illuminator	IR850 nm
Communication	RS485 - single line half duplex baud rate 1200, cable distance 1200 metres Ethernet - 10/100 Mbps, TCP, UDP, FTP, HTTP, DHCP Wiegand - 26 SHA1, Wiegand 64, custom Wiegand format
Relay Outputs	2 relay output
Inputs	2 digital inputs (opto-isolated)
Output data	Read results from number plates and/or images taken by the camera
Cable spec	Network (CAT5E) Power + IO (LiCY) 8 x 2 x 0.14 mm2
Cable length	Network: 5 metres Power + IO: 5 metres
Data message cust	RESTful interface (API) and string syntax fully configurable for integration with access control systems and third party software
Storage	10GB all purpose storage
Standards	CE
Accessories	Pole/wall mounting kit included

Intelligent Licence Plate Recognition for Seamless Vehicle Access Control

The Nedap ANPR Lumo delivers professional-grade automatic number plate recognition for sites requiring hands-free vehicle identification. Ideal for corporate headquarters, distribution centres, residential estates, and multi-storey car parks, this all-in-one camera system eliminates the need for physical credentials whilst maintaining robust security. The deep learning algorithms ensure reliable plate capture even in challenging conditions such as poor weather, varying light levels, or vehicles approaching at speed.

For facilities managing temporary visitor access, contractor vehicles, or delivery fleets, the ANPR Lumo provides a flexible solution that integrates seamlessly with existing barrier systems and access control software. The built-in access control lists enable standalone operation for smaller installations, whilst Wiegand and Ethernet connectivity supports enterprise-scale deployments. Whether controlling a single entrance or managing multiple lanes across a logistics campus, the system adapts to your operational requirements without complex infrastructure changes.

Frequently asked questions

What read range does the ANPR Lumo support?

The ANPR Lumo captures number plates from 2 to 10 metres distance with a lane width coverage of up to 3.5 metres, suitable for standard vehicle entrance configurations.

Can the ANPR Lumo work as a standalone system without additional software?

Yes, the camera includes built-in vehicle access control features with configurable time-based access control lists (whitelist, blacklist, ignore list) through web-based software, enabling standalone operation.

What output formats does the ANPR Lumo support for integration?

The system supports RS485, Wiegand (26-bit, 64-bit, and custom formats), and Ethernet (TCP/UDP) output, plus a RESTful API for integration with access control systems and third-party software.

How is the ANPR Lumo powered?

The unit accepts 24 VDC power supply or Power over Ethernet (PoE), with 8W power consumption. A mounting bracket is included as standard for wall or pole installation.

Which countries' number plates are supported?

The ANPR Lumo supports infrared-reflective number plates from a comprehensive list of countries worldwide, with region-specific libraries available for configuration through the web interface.
