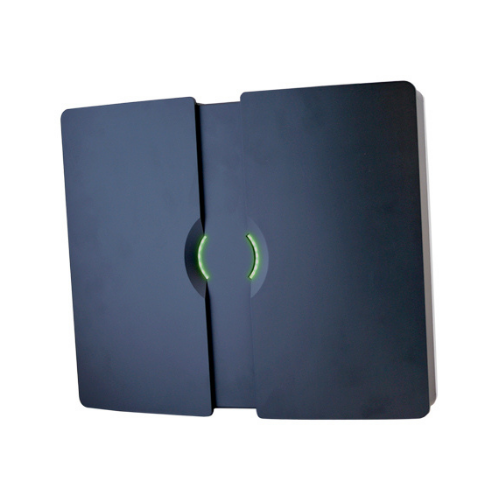

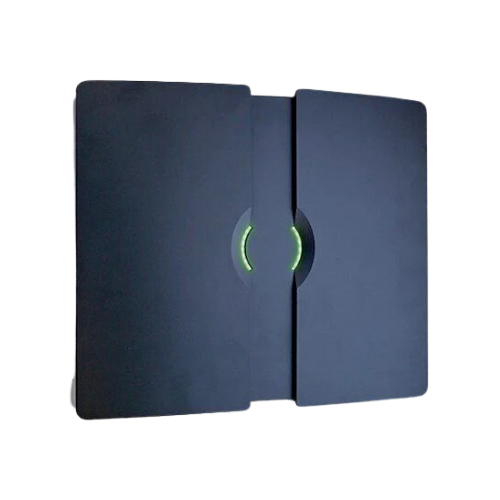

Nedap Transit Ultimate

Name: Nedap Transit Ultimate
Brand: Nedap
SKU: 9229206
Availability: InStock

9229206

'Securing the Traffic Flow'

Robust long-range reader, based on semi active RFID technology, which enables automatic vehicle identification at distances of up to 10 metres and speeds of up to 125 mph.

Request Quote Download Datasheet

Product features & benefits

The TRANSIT Ultimate is designed to perform well in both high security applications and demanding vehicular access control applications, under harsh environmental conditions.

The TRANSIT Ultimate offers the highest level of security and convenience for both vehicles and drivers. The built-in antenna, an integrated read range adjustment board and a variety of communication interfaces ensure seamless and flexible integration. The identification lobe of the reader is a directed beam, offering precise determination of the detection area. A second RFID communication channel is used for advanced bidirectional communication and secure tag authentication.

Benefits

Robust industrial design
Read range of up to 10 metres
Object speed up to 125 mph
Well-defined adjustable read range
Multi-channel selection
Variety of integrated communication interfaces
3 colour LED indication
Tag authentication based on AES Encryption
Bi-directional communication using two RFID channels
Supports backward-compatibility mode with previous TRANSIT readers

Specifications

Dimensions	330x274x140 mm
Weight	5 kg
Housing	Cover ABS, Housing Die-casting ADC12
Protection	IP66
Detection range	Up to 10 metres, message acceptance ratio > 80%
Operating temp	-30°C to +60°C
Object speed	Up to 124 mph at appropriate distance
Power supply	100-240 VAC (60 - 50Hz) or 24 VDC (±10%)
Power cons	<25VA (on AC), <20 Watt (on DC)
Operating freq.	2.438 – 2.457 GHz, 433.62 & 434.22 MHz (RX-Cat 3) Ton <5 seconds
2.45 GHz channels	32 channels, spacing 600 kHz to avoid interference, to be used when TRANSIT Ultmate readers are installed in close vicinity of each other
Air I/F 2.45 GHz	Nedap proprietary encryption standard 1.875 kbps
Air I/F 433 MHz	Encryption based upon diversified AES128; 300kbps/ GFSK 75 kHz; Duty cycle <1%; LBT not applicable
Polarization	Circular (LHC) (2450 MHz) integrated antenna Horizontal (433 MHz); dedicated antenna
Relay output	1 relay output (NO, common, NC), 24 VDC 2A, 120 VAC 1A
Inputs	3 dry contacts or TTL
Audio	Range check beeper
Output	Barcode 39, Wiegand 26-bit, Wiegand 32-bit, Wiegand 37-bit, FF56 and Omron ISO 7811/2, USB
Interfaces	USB, Wiegand, Magstripe, Barcode
Available I/F boards	RS232 (default), RS422, RS485, TCP/IP, Profibus-DP
Comm protocols	CR/LF, DC2/DC4 and various OEM protocols
Mounting	Wall mounting set included. Optional Pole Mounting Kit available (5626595)

High-Security Vehicle and Driver Identification for Critical Infrastructure

The TRANSIT Ultimate delivers simultaneous vehicle and driver identification for environments where security cannot be compromised. Airports, seaports, military installations, and mining operations rely on this reader to verify that authorised vehicles are operated by authorised personnel—preventing tailgating and credential sharing at critical access points.

With read ranges up to 15 metres and vehicle speeds up to 200 km/h, the TRANSIT Ultimate eliminates bottlenecks at high-throughput gates while maintaining rigorous security protocols. The AES-encrypted authentication prevents tag cloning and replay attacks, making it the definitive choice for facilities requiring defence-grade vehicle access control.

Frequently asked questions

What read range can the TRANSIT Ultimate achieve?

Up to 15 metres when used with Compact Button tags. The read range can be adjusted on-site to suit specific lane configurations and prevent cross-reads between adjacent lanes.

Can the TRANSIT Ultimate identify both vehicles and drivers simultaneously?

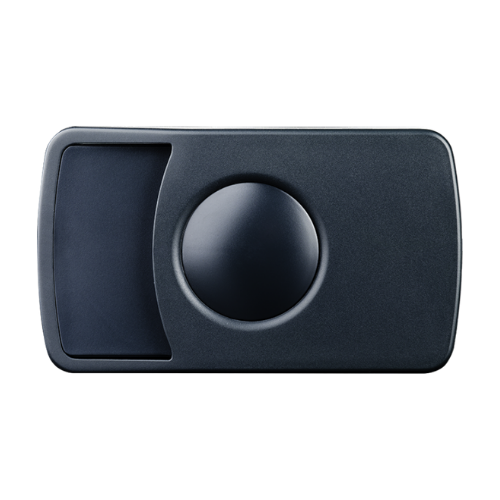

Yes, when paired with Booster tags that combine long-range vehicle ID with HID Prox, MIFARE, iClass, or LEGIC driver credentials, both identities are verified in a single transaction.

What communication interfaces are available?

RS232 (default), RS422/485, TCP/IP, and OSDP v2 with secure channel communication. Wiegand and Magstripe outputs are also supported for legacy system integration.

Is the reader suitable for harsh outdoor environments?

Yes, the IP66-rated housing operates reliably from -30°C to +66°C and withstands rain, snow, and ice exposure.

What security features prevent tag cloning?

The optional Security Key Pack enables AES128-encrypted bidirectional communication between readers and tags, preventing cloning and replay attacks on Ultimate tags and Boosters.

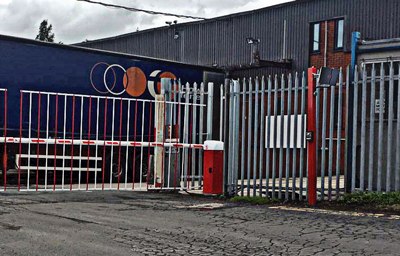

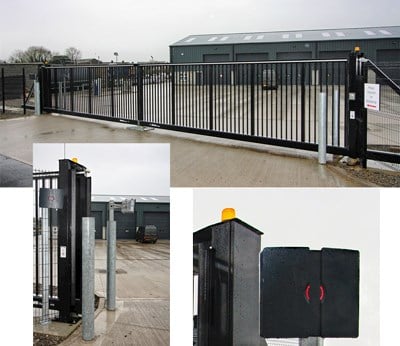

Case studies
