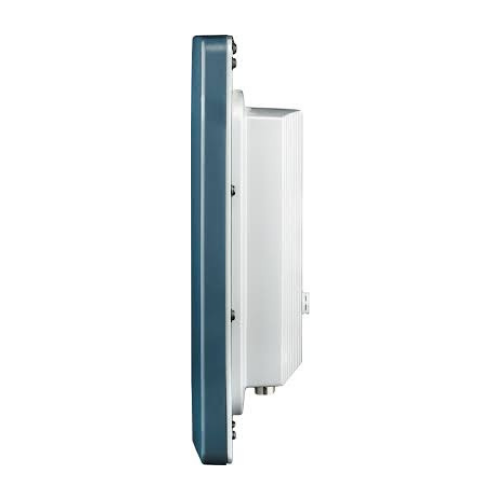

Nedap uPASS Target
9217363
'High-end UHF Long Range Reader'
The uPASS Target from Nedap is a long-range reader based on passive UHF RFID technology that offers long-range identification at up to 10 metres.
PRODUCT FEATURES & BENEFITS
The Nedap uPASS Target is a robust solution for long-range identification of vehicles, people and rolling stock. It is ideal both for access control to gated sites and for close monitoring of traffic flow activities at industrial sites and logistic depots.
Its Plug-and-Play features enable it to be installed in just a few simple steps. Its variety of industry-standard communication interfaces supports seamless integration into any existing or new third party systems for access control, logistic operations, security and parking.
An optional external antenna is available, which can be used to expand the reading scope of the reader in a cost-efficient way.
The Nedap uPASS Target complies with the standards for reading EPC Gen 2 passive UHF tags.
Benefits
- Reads at up to 10 metres
- Industrial reader design
- Operates with passive UHF tags (EPC GEN 2)
- Circular polarized antenna (freedom of tag orientation)
- Easy integration and installation
- On-site adjustable read range
Connect
Contact Us
+44 (0)1633 485 533
.svg)
Product CatalogueSpecifications
electrical
| Supply Voltage: | 12 to 24 VDC supply recommended / PoE+ PSE IEEE 802.3at compliant |
| Current consumption: | 1.5A @12VDC, 0.75@24VDC |
physical
| Dimensions: | 286 x 285 x 78 mm |
| Weight: | 3.5 kg |
| Housing: | Aluminium chassis with UL94 ABS cover |
| Protection: | IP66 |
| Operating temperature: | -30°C to +60°C |
| Mounting: | Wall mounting as default. Pole mounting kit available. |
inputs/outputs
| Inputs: | 2 digital inputs for LED control - active low inputs (0V - 5V) 1 digital input for reader disable - active low inputs (0V - 5V) 1 TNC Nedap UHF antenna |
| Relay output: | 1 relay output (NO, common, NC), 24 VDC 2A |
| Data output: | Wiegand, magstripe (depending on programmed tag format) |
| Cable length: | Wiegand 150m (22AWG) |
| Interfaces: | RS422 / RS485 , Ethernet 10/100Mbps and USB service interface |
| Air interface: | According to ISO 18000-6 C |
| Certifications: | CE, FCC, UL EMC European Directive for EMC 89/336 EEC, EN301489-1 Safety EN 60950 |
operational
| Operating frequency: | 865-868 MHz (902-928 MHz option available) |
| Detection range: | Up to 10 metres with passive Nedap UHF tags |
| Polarization: | Circular polarization |
| Identification: | Read Only |
Industrial-Grade Long-Range Reader for Logistics and High-Speed Transportation
The uPASS Target is an industrial-strength UHF reader built for demanding environments where vehicles, rolling stock, and heavy equipment require reliable identification. Rail yards, bus depots, logistics centres, and automated truck operations depend on its robust aluminium construction and 10-metre read range to monitor traffic flow and control site access.
Unlike lighter-duty readers, the uPASS Target features PoE+ support for simplified installation, an optional external antenna for bi-directional lane coverage, and an adjustable read range to prevent cross-reads in complex multi-lane configurations. Its plug-and-play setup with industry-standard interfaces enables rapid deployment into existing traffic management and access control systems.
.svg)
.png)
Industrial Build
Aluminium chassis withstands the vibration, dust, and harsh conditions of logistics and rail environments.
PoE+ Support
IEEE 802.3at Power over Ethernet eliminates separate power runs to remote installation locations.
External Antenna
Optional antenna expands coverage for bi-directional detection or challenging read geometries.
Adjustable Range
On-site configurable read distance prevents cross-reads between adjacent lanes or loading bays.
High-speed transportation, rail yards, bus depots, car park facilities, internal logistics operations, industrial sites, and automated truck activities requiring reliable long-range identification.
Yes, it is PoE+ PSE IEEE 802.3at compliant, allowing both power and data over a single Ethernet cable for simplified installation.
The external antenna expands the reading scope cost-effectively and enables bi-directional detection for monitoring both vehicle entry and exit lanes from a single reader.
RS422/RS485, Ethernet 10/100Mbps, USB service interface, plus Wiegand and Magstripe data outputs for access control integration.
The uPASS Target features a heavier-duty aluminium construction (3.5kg vs 1kg), PoE+ support, external antenna option, and is designed for industrial environments. The uPASS Go is a lighter, more compact solution optimised for standard car park installations.
