ANPR Stainless Steel Posts
SSP-ANPR / SSDP-ANPR
'Elegant and Robust Housings for ANPR and Traffic Signals'

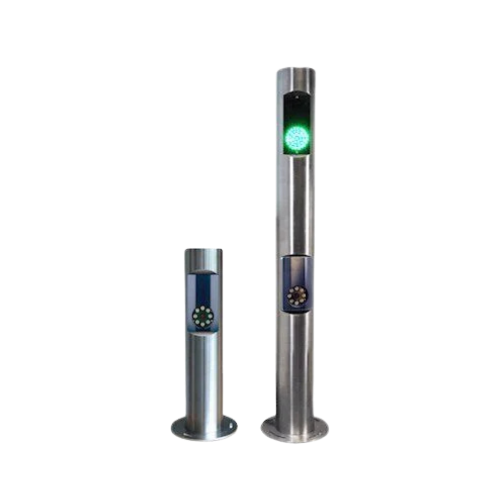

The SSP-ANPR and SSDP-ANPR stainless steel posts are each designed to house the Nadap ANPR camera in an attractive roadside post/bollard. The SSDP-ANPR is a dual height post that includes integral traffic signals.
PRODUCT FEATURES & BENEFITS
In both stainless steel housing options, the ANPR camera is mounted at the ideal height for reading standard number plates. It is contained within the body of the post with no restriction to either the lens or IR lighting.
Once fitted, the rear of the camera can be accessed via a service panel.
The traffic signal mounted at the top of the SSDP-ANPR may be controlled directly from the access controller or barrier logic using individual 24V control signals for each of the red and green LED clusters.
benefits
- Attractive brushed stainless steel housing
- Ideal camera height for standard licence plates
- Integral red and green LED traffic lights (SSDP-ANPR)
- Robust bollard style housing with 300mm base plate
- Support all Nedap ANPR cameras
Connect
Contact Us
+44 (0)1633 485 533
.svg)
Product CatalogueSpecifications
Single Height Post
| Dimensions (mm): | Total height: 858; Post diameter: 168; baseplate diameter: 300 |
| Weight: | Approx. 12.5 kg |
| Material: | Stainless steel AISA 316L |
| Wall thickness: | 3mm |
Dual Height Post
| Dimensions (mm): | Total height: 1508; Post diameter: 168; baseplate diameter: 300 |
| Weight: | Approx. 21 kg |
| Material: | Stainless steel AISA 316L |
| Wall thickness: | 3mm |
LED Lights
| Diameter: | 90mm |
| Voltage: | 24 Vdc/ac |
| Viewing angle: | 30° |
| Brightness: | 5500 mcd per LED red x 40 pcs. each cluster 4900 mcd per LED green x 40 pcs. each cluster |
Professional-Grade Mounting Solutions for Vehicle Entrance Installations
The SSP-ANPR and SSDP-ANPR stainless steel posts provide elegant, purpose-built housing for Nedap ANPR cameras at vehicle entrances where aesthetics matter as much as functionality. Designed for corporate headquarters, premium residential developments, retail parks, and hospitality venues, these brushed stainless steel bollards complement modern architectural environments whilst ensuring optimal camera positioning for reliable plate recognition.
The single-height SSP-ANPR bollard positions the camera at the ideal 585mm height for reading standard number plates, whilst the dual-height SSDP-ANPR incorporates integrated red and green LED traffic signals for controlled lane management. Both variants feature robust 300mm base plates suitable for surface mounting on concrete or tarmac, with rear service panels enabling easy camera maintenance without disturbing the installation. The marine-grade 316L stainless steel construction provides lasting corrosion resistance for outdoor installations exposed to weather, road salt, and vehicle emissions.
.svg)
.png)
Corrosion Resistant
Marine-grade 316L stainless steel withstands harsh outdoor conditions and road salt exposure
Optimal Height
Camera positioned at 585mm ensures consistent plate capture for standard vehicles
Traffic Signals
Dual-height variant includes integrated 24V LED traffic lights for lane control
Easy Service
Rear access panel allows camera maintenance without removing the bollard installation

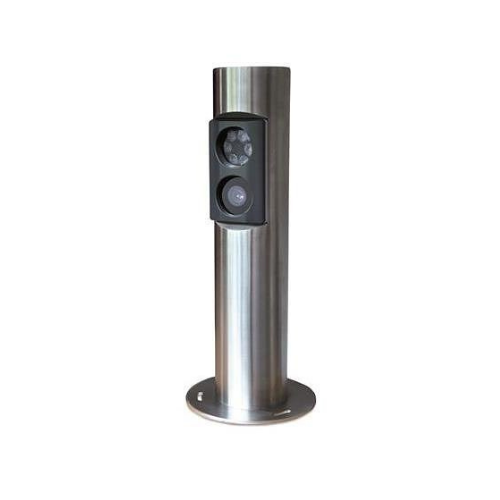

The SSP-ANPR is a single-height bollard (858mm) for camera mounting only, whilst the SSDP-ANPR is a dual-height post (1508mm) that includes integrated red and green LED traffic signals at the top.
The posts support all Nedap ANPR cameras including the ANPR Lumo, ANPR Access V2 Short-Range, and ANPR Access V2 Long-Range models.
The LED traffic signals operate on 24V DC/AC and can be controlled directly from your access controller or barrier logic using individual control signals for the red and green LED clusters.
Both posts are manufactured from AISI 316L marine-grade stainless steel with 3mm wall thickness, featuring an attractive brushed finish suitable for premium installations.
Both models feature a 300mm diameter base plate for surface mounting. The single-height post weighs approximately 12.5kg and the dual-height post weighs approximately 21kg.
