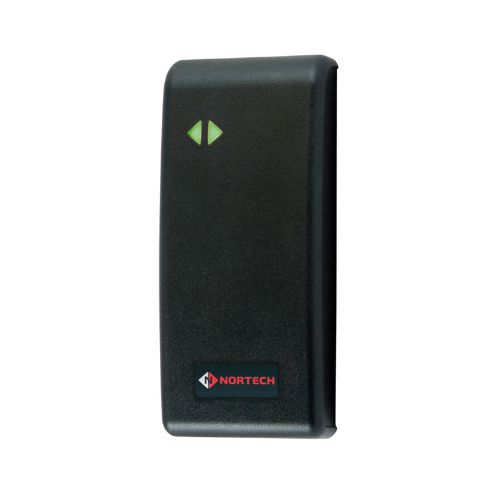

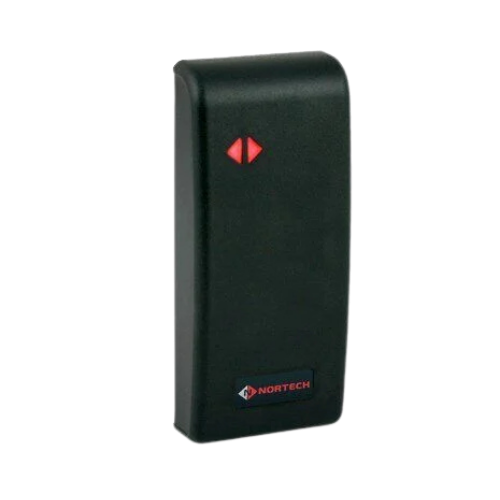

Mullion Mount Proximity Reader

Name: Mullion Mount Proximity Reader
Brand: Nortech Control Systems Ltd
SKU: MP1 Series
Availability: InStock

MP1 Series

'Compact, Robust and Elegant'

Designed to fit most architectural and interior design settings, with the robust ABS polycarbonate construction that allows it to be used in most working environments.

Request Quote Download Datasheet

Product features & benefits

The MP1 mullion mount proximity readers can read a wide range of 125kHz type proximity cards and tokens. Most reader models can support two or more card technologies including those used by many third party systems such as PAC and Paxton, and provide a selection of output formats.

Mullion mount MP1 card readers are the perfect choice of reader for new installations, while the wide choice of supported technologies makes it cost-effective for extending existing third party installations and for supporting the use of existing proximity cards and tokens in new access control applications.

Benefits

Reader selection is simplified by combining the flexibility of the reader series with the backup of Nortech’s access control and proximity reader know-how
Elegant design and easy installation enables installers to add a professional finish to any access control project
Compatibility with most controllers reduces the cost of upgrades and extensions
Offers cost savings by enabling existing cards and tokens to be re-used on new installations
Combined with Nortech’s access control systems, a flexible, robust and cost-effective solution can be configured to meet most small to medium access control applications

Specifications

electrical

Supply Voltage	5VDC to 16VDC
Current Requirement	250 mA maximum

physical

Dimensions (mm)	111 x 49 x 19 (H x W x D)
Colour	Charcoal grey (standard version)
Material	ABS polycarbonate
Rating	IP65 - suitable for outdoor and indoor use

environmental

Operating Temperature	-20°C to 50°C Ambient

connectivity (Standard Version)

Pigtail Cable Length	300mm
Cable Gauge	7/0.2, 0.22mm stranded
Conductors	8 core screened

operational (standard version)

Reading Range	Up to 100mm depending upon technology and the type of token or card
Audible indication	Bleeper controlled by host controller (active low)
Visual indication	Dual colour LED (red/green) Normally red - blinks green when token or card is read. Green when signal received from host controller on the LED line (active low)

Versatile Access Control for Narrow Door Frames and Architectural Installations

The MP1 mullion mount reader excels in commercial office buildings, retail environments, and educational facilities where door frame space is limited.

Its slim 49mm width allows seamless mounting on narrow mullions and architraves without compromising aesthetics, making it ideal for glass door installations, aluminium-framed entrances, and modern architectural designs.

Whether securing private offices, conference rooms, or staff-only areas, the MP1 delivers reliable identification without visual intrusion.This reader is particularly suited for system integrators managing mixed-credential estates. With support for both 125kHz and 13.56MHz technologies including LEGIC, Mifare, and iCLASS, the MP1 enables phased technology migrations without replacing hardware.

Facilities upgrading from legacy PAC or Paxton systems can continue using existing credentials while introducing higher-security smart cards—reducing transition costs and user disruption across multi-site deployments.

Frequently asked questions

What card technologies does the MP1 reader support?

The MP1 supports 125kHz proximity cards (EM, PAC, Paxton compatible) plus 13.56MHz smart card technologies including LEGIC Advant, LEGIC Prime, Mifare, iCLASS, ICODE, and Tag-it 2. Some models simultaneously support multiple technologies for migration flexibility.

Can I use the MP1 with my existing access control system?

Yes, the MP1 outputs data in industry-standard formats including 26-bit Wiegand, 32-bit Wiegand, 34-bit Wiegand, 44-bit Wiegand, Clock & Data, and RS232—ensuring compatibility with most third-party controllers on the market.

What is the maximum reading range?

Reading range is up to 100mm depending on the card technology and credential type. Standard proximity cards typically achieve 70-100mm, while some smart card formats may read at shorter distances.

Is the MP1 suitable for outdoor installation?

Yes, the MP1 carries an IP65 weatherproof rating and operates from -20°C to 50°C, making it suitable for covered outdoor entrances, loading bays, and semi-exposed locations.

What connection options are available?

The MP1 is available with pigtail cable (standard), terminal block, or 3m fixed cable connections. Standard versions include an 8-core screened cable for data, power, and LED/bleeper control.
