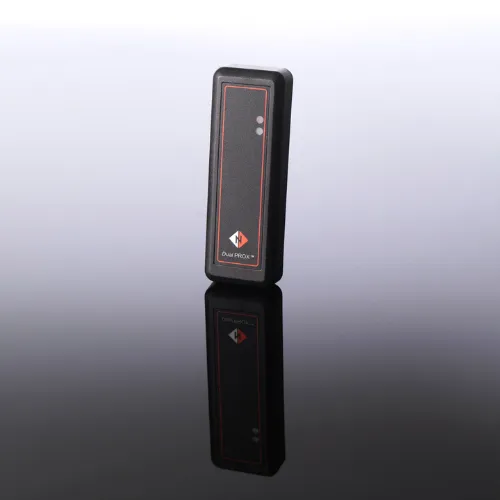

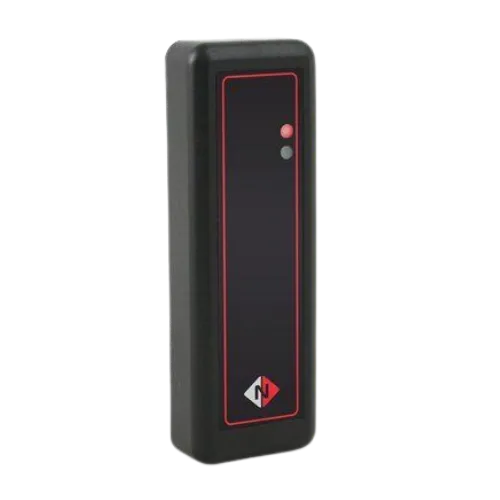

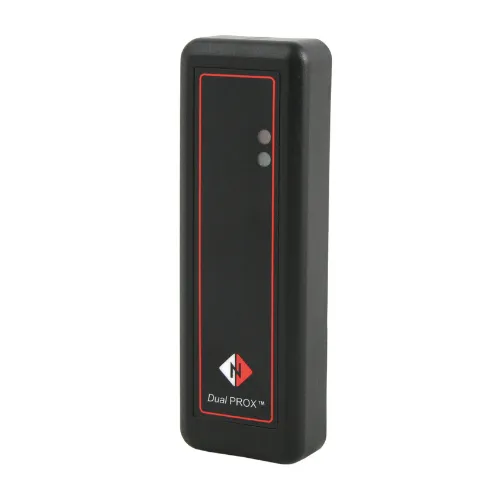

Slimline Reader
SP1 Series
'Classic Slimline Design'
Fits most door mullion and architrave profiles that can be located either indoors or outdoors and are quick and easy to install.
Product features & benefits
The SP1 reads a wide range of 125kHz type proximity cards and tokens. These may be from Nortech’s own extensive range of cards, fobs and tokens, existing third party cards and tokens, or a combination of both depending upon the application. Supports one or more card technologies together with a selection of output formats. Includes several dual technology models for simultaneously supporting two independent card technologies.
An ideal companion to Nortech’s range of access controllers, the SP1 reader series offers the perfect choice of reader for new installations, while the wide choice of supported technologies and interfaces makes it an ideal cost-effective option for extending existing third party installations and for supporting the use of existing cards and tokens in new access control applications.
Benefits
- Reader selection is simplified by combining the flexibility of the reader series with the backup of Nortech’s access control and proximity reader know-how
- Easy installation and an elegant design enables installers to add a professional finish to any access control project
- Compatibility with most controllers reduces the cost of upgrades and extensions
- Offers cost savings by enabling existing cards and tokens to be re-used on new installations
- Combined with Nortech’s access control systems, a flexible, robust and cost-effective solution can be configured to meet most small to medium access control applications
Specifications
electrical
| Supply Voltage | 5VDC to 16VDC |
|---|---|
| Current Requirement | 70 mA maximum |
physical
| Dimensions (mm) | 116 x 40 x 17 (H x W x D) |
|---|---|
| Colour | Black |
| Material | ABS plastic - Stabilised against Ultra Violet Light |
| Rating | IP66 - suitable for outdoor and indoor use |
environmental
| Operating Temperature | -30oC to 50oC Ambient |
|---|
connection (standard version)
| Pigtail Cable Length | 300mm |
|---|---|
| Cable Gauge | 7/0.2, 0.22mm stranded |
| Conductors | 8 core screened |
operational (standard version)
| Reading Range | Up to 80mm depending upon technology and the type of token or card |
|---|---|
| Audible indication | Bleeper controlled by host controller (active low) |
| Visual indication | One red 4mm LED and one green 4mm LED. Red LED normally on - blinks when token or card is read. Green LED lights when signal received from host controller on the LED line (active low) |
Related documents
Datasheets, manuals and guides for the Slimline Reader. Every file is a PDF and opens in a new tab.
Datasheets
Sales sheets
Installation manuals
Space-Efficient Access Control for Narrow Mullions and Compact Installations
The SP1 slimline reader delivers full-feature proximity access control in a remarkably compact 40mm width, purpose-built for narrow door mullions and tight architectural spaces.
Aluminium shopfronts, glass partition entrances, and slim steel door frames all accommodate this reader where wider units simply won't fit. Its UV-stabilised ABS construction maintains colour integrity and structural performance even in sunlit atriums, south-facing entrances, and outdoor applications subject to prolonged UV exposure.With IP66 weatherproofing exceeding most competitive offerings, the SP1 operates reliably in fully exposed outdoor locations, coastal environments, and industrial settings with airborne particulates.
The 80mm reading range provides responsive tap-and-go access without requiring users to press credentials against the reader surface.
System integrators specify the SP1 for perimeter gates, outbuilding access, car park pedestrian entrances, and any application demanding minimal visual footprint with maximum environmental resilience.
Frequently asked questions
How slim is the SP1 reader?
The SP1 measures just 116 x 40 x 17mm (H x W x D), making it one of the slimmest proximity readers available. This allows installation on narrow mullions as small as 45mm wide.
What weatherproofing does the SP1 offer?
The SP1 carries an IP66 rating—protecting against powerful water jets and complete dust exclusion. This exceeds the IP65 standard and enables installation in exposed outdoor locations and industrial environments.
Does the SP1 have audible feedback?
Yes, the SP1 includes a host-controlled bleeper providing audible confirmation of successful card reads. The bleeper activates via the active-low control line from the access controller.
What is the operating temperature range?
The SP1 operates from -20°C to 50°C ambient temperature, covering most commercial and industrial environments from cold storage access to warm plant rooms.
What card technologies are supported?
The SP1 supports 125kHz proximity technologies including EM-type cards (open standard), PAC credentials (DualProx model), and Paxton-compatible fobs. Multi-technology 13.56MHz versions are available in the mullion mount form factor instead.
