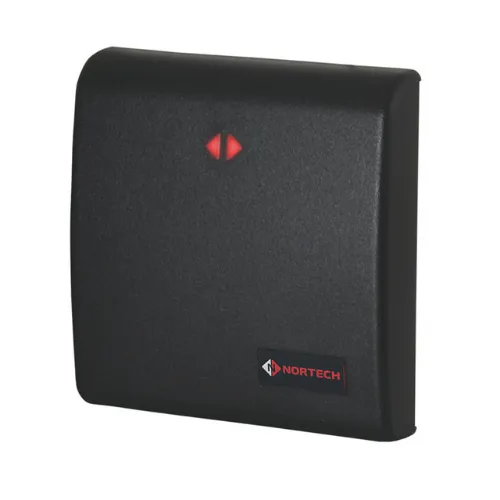

Wall Switch Smart Reader

Name: Wall Switch Smart Reader
Brand: Nortech Control Systems Ltd
SKU: WP1 Series
Availability: InStock

WP1 Series

'Elegant, Rugged and Adaptable'

The WP1 series’ low profile housing design suits most architectural and interior design settings, while the robust ABS polycarbonate construction allows it to be used in most working environments.

Request Quote Download Datasheet

Product features & benefits

The WP1 smart card series is capable of reading a wide range of 13.56MHz type smart cards and tokens including LEGIC and Mifare.

An ideal companion to Nortech’s range of access controllers, the WP1 reader series offers the perfect choice of reader for new installations, while the wide choice of supported technologies and interfaces makes it an ideal cost-effective option for extending existing third party installations and for supporting the use of existing credentials in new access control applications.

Benefits

Finding the right reader for your application has been made much simpler by combining the flexibility of the reader series with the backup of Nortech’s access control and proximity reader know-how
Easy installation and an elegant design enables installers to add a professional finish to any access control project
Compatibility with most controllers reduces the cost of upgrades and extensions
Offers cost savings by enabling existing cards and tokens to be re-used on new installations
Combined with Nortech’s access control systems, a flexible, robust and cost-effective solution can be configured to meet most small to medium access control applications

Specifications

electrical

Supply Voltage	5VDC to 16VDC
Current Requirement	250 mA maximum

physical

Dimensions (mm)	90 x 90 x 18 (H x W x D)
Colour	Charcoal grey (standard version)
Material	ABS polycarbonate
Rating	IP65 - suitable for outdoor and indoor use

environmental

Operating Temperature	-20oC to 50oC Ambient

connectivity (standard version)

Pigtail Cable Length	300mm
Cable Gauge	7/0.2, 0.22mm stranded
Conductors	8 core screened

operational (standard version)

Reading Range	Up to 100mm depending upon technology and the type of token or card
Audible indication	Bleeper controlled by host controller (active low)
Visual indication	Dual colour LED (red/green) Normally red - blinks green when token or card is read. Green when signal received from host controller on the LED line (active low)

Discreet Smart Card Security for Standard UK Back Box Installations

The WP1 Wall Switch Smart Reader delivers enterprise-grade smart card authentication in a familiar wall switch form factor. Designed to fit standard UK 25mm and 35mm back boxes, this reader integrates invisibly into office corridors, meeting rooms, and interior doorways where a low-profile appearance is essential.

Architects and interior designers appreciate the clean 90mm square footprint that aligns with standard electrical fittings throughout a building.Ideal for corporate environments, hotels, and co-working spaces, the WP1 provides secure access using LEGIC, Mifare, and other 13.56MHz credentials.

The reader's terminal block and pigtail connection options accommodate both new installations and retrofit projects where existing cable infrastructure must be reused.

With IP65 protection, the WP1 can also serve transitional spaces such as building lobbies and covered walkways where occasional exposure to moisture is possible.

Frequently asked questions

What back box depth is required for the WP1 reader?

The WP1 is designed for standard UK single-gang back boxes with depths of 25mm or 35mm. The reader's 18mm depth ensures it sits flush against the wall surface.

Does the WP1 support dual-technology credentials?

Yes, dual-technology variants can read both legacy 125kHz proximity cards and 13.56MHz smart cards, enabling phased migration from older credential technologies without replacing all cards at once.

How is the reader configured for different Wiegand formats?

Output format selection is made via DIP switches or jumper settings on the reader PCB. Options include 26-bit, 32-bit, and 34-bit Wiegand as well as Clock & Data and RS232 serial formats.

What visual feedback does the reader provide?

The WP1 features a dual-colour LED (red/green) controlled by the host access controller. Standard behaviour shows red in standby, blinking green on card read, and solid green when access is granted.

Can custom colour finishes be ordered?

Yes, Nortech offers standard finishes in charcoal grey, black, white, and chrome. Custom colours and corporate branding can be applied on request for larger project orders.
