Flush Mount Reader

Name: Flush Mount Reader
Brand: Nortech Control Systems Ltd
SKU: WP2 Series
Availability: InStock

WP2 Series

'Stylish and Vandal Resistant'

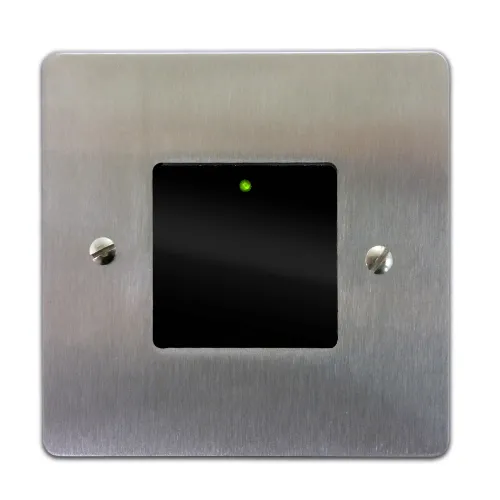

Designed to fit standard UK wall switch back boxes, whilst its flush-fit stainless steel mounting makes it robust and vandal resistant.

Request Quote Download Datasheet

Product features & benefits

The WP2 reads a range of 125kHz type proximity cards and tokens. These may be from Nortech’s own extensive range of electronic credentials, existing third party cards and tokens, or a combination of both depending upon the application.

The WP2 reader series offer the perfect choice of reader for new installations. The choice of supported interfaces also makes it an excellent cost-effective option for extending existing third party installations and for supporting the use of existing cards and tokens in new access control applications.

Benefits

Reader selection is simplified by combining the flexibility of the reader series with the backup of Nortech’s access control and proximity reader know-how
Easy installation and an elegant design enables installers to add a professional finish to any access control project
Compatibility with most controllers reduces the cost of upgrades and extensions
Offers cost savings by enabling existing cards and tokens to be re-used on new installations
Combined with Nortech’s access control systems, a flexible, robust and cost-effective solution can be configured to meet most small to medium access control applications

Specifications

electrical

Supply Voltage	5VDC to 16VDC
Current Requirement	70 mA maximum

physical

Dimensions (mm)	90 x 90 x 22 (H x W x D)
Panel Finish	Stainless steel/black
Material	Stainless steel plate with tinted ADC lens, Electronics encapsulated in polycarbonate housing
Rating	Encapsulated electronics: IP65

environmental

Operating Temperature	-20°C to 50°C Ambient

connectivity (standard version)

Pigtail Cable Length	300mm
Cable Gauge	7/0.2, 0.22mm stranded
Conductors	8 core screened

operational (standard version)

Reading Range	Up to 50mm depending upon technology and the type of token or card
Visual indication	Dual colour LED (red/green) Normally red - blinks green when token or card is read. Green when signal received from host controller on the LED line (active low)

Vandal-Resistant Access Control with Elegant Stainless Steel Aesthetics

The WP2 flush mount reader combines architectural elegance with physical security for environments requiring both visual sophistication and tamper resistance.

Educational institutions, public buildings, and retail premises benefit from the stainless steel faceplate that resists scratches, graffiti, and deliberate damage while maintaining a premium appearance.

The flush-fit design sits level with surrounding surfaces, eliminating protrusions that could catch on bags or clothing in busy corridors and reception areas.Mounting into standard UK back boxes, the WP2 delivers straightforward installation for new builds and refurbishment projects.

The encapsulated electronics provide IP65 protection against moisture ingress, enabling use in entrance lobbies, covered walkways, and washroom access points. While supporting 125kHz credentials only, the WP2 reads the most widely deployed card formats including EM, PAC, and Paxton—making it an excellent choice for expanding existing installations or replacing damaged readers in established systems.

Frequently asked questions

What makes the WP2 vandal resistant?

The WP2 features a flush-fit stainless steel mounting plate with a tinted ADC lens, providing physical protection against scratches, impacts, and tampering. The electronics are fully encapsulated in a polycarbonate housing for additional durability.

What is the IP rating?

The WP2 carries an IP65 rating for its encapsulated electronics, providing protection against dust ingress and water jets from any direction—suitable for covered outdoor areas and locations subject to cleaning.

What card formats are compatible?

The WP2 supports 125kHz proximity credentials including Nortech cards, EM-type cards (used by most leading manufacturers), PAC cards and fobs (DualProx model), and Paxton cards and fobs.

What is the reading range?

The WP2 achieves a reading range of up to 50mm depending on the card technology and credential format. This shorter range compared to plastic-housed readers is a trade-off for the metal faceplate construction.

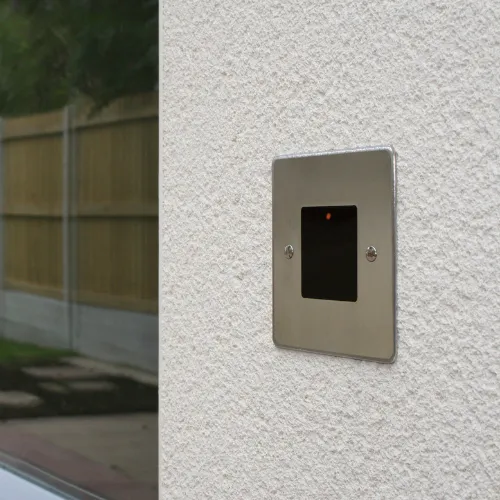

Can I use the WP2 outdoors?

Yes, the IP65-rated encapsulated electronics enable outdoor installation in covered or semi-protected locations. The stainless steel faceplate provides excellent corrosion resistance for external environments.
