TCP/IP-220 TCP/IP Adaptor

Name: TCP/IP-220 TCP/IP Adaptor
Brand: Nortech Control Systems Ltd
SKU: TCP/IP-220
Availability: InStock

TCP/IP-220

'The Ethernet Option'

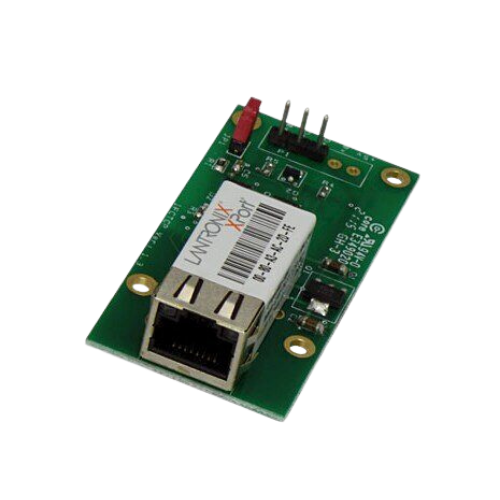

The TCP/IP-220 network adaptor enables management communication using TCP/IP as well as RS485 to provide an extremely flexible means of linking the door controllers to the management PC.

Request Quote Download Datasheet

Product features & benefits

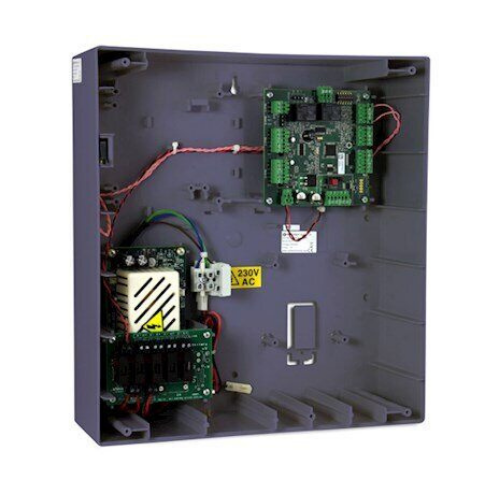

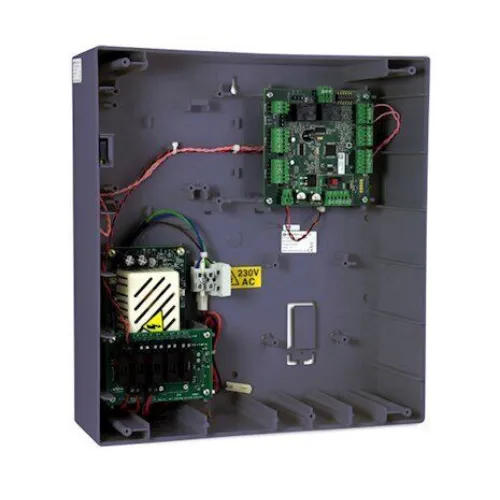

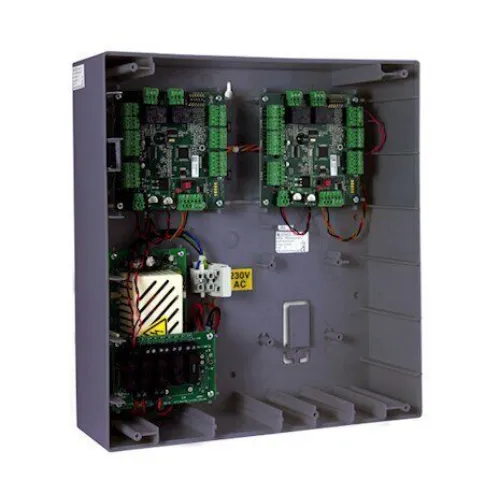

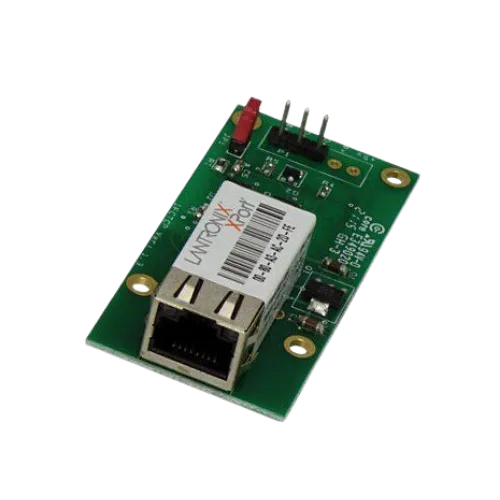

The TCP/IP-220 is a network adaptor that can be fitted to any CRC220 or CRC221 door controller module to provide TCP/IP data communications between the door controller and the PC hosting the Norpass3 network management software. The interface can support the connection of a further 31 door controllers via an RS485 bus so that they can be served by the same TCP/IP port, thereby enabling flexible use of the available cabling infrastructure.

The fitting of a TCP/IP-220 adaptor is quick and simple and can be fitted to any of the door controllers on the system according to the availability of existing or planned data communications installations.

Benefits

Enables communication over an existing data network infrastructure saving installation time and cost
Combining TCP/IP with RS485 allows network optimisation to reduce installation cost
Quick and easy to fit to new and existing controllers
Device installation software simplifies IP address assignment and network configuration

Specifications

Supply Voltage	5VDC
Supply Current	Typically 230mA

Dimensions (mm)	72 x 35 x 25 (H x W x D)

Operating Temp	0°C to +70°C
Storage Temp	-20°C to 85°C
Relative Humidity	95% non-condensing

Leverage Existing Network Infrastructure for Access Control Communication

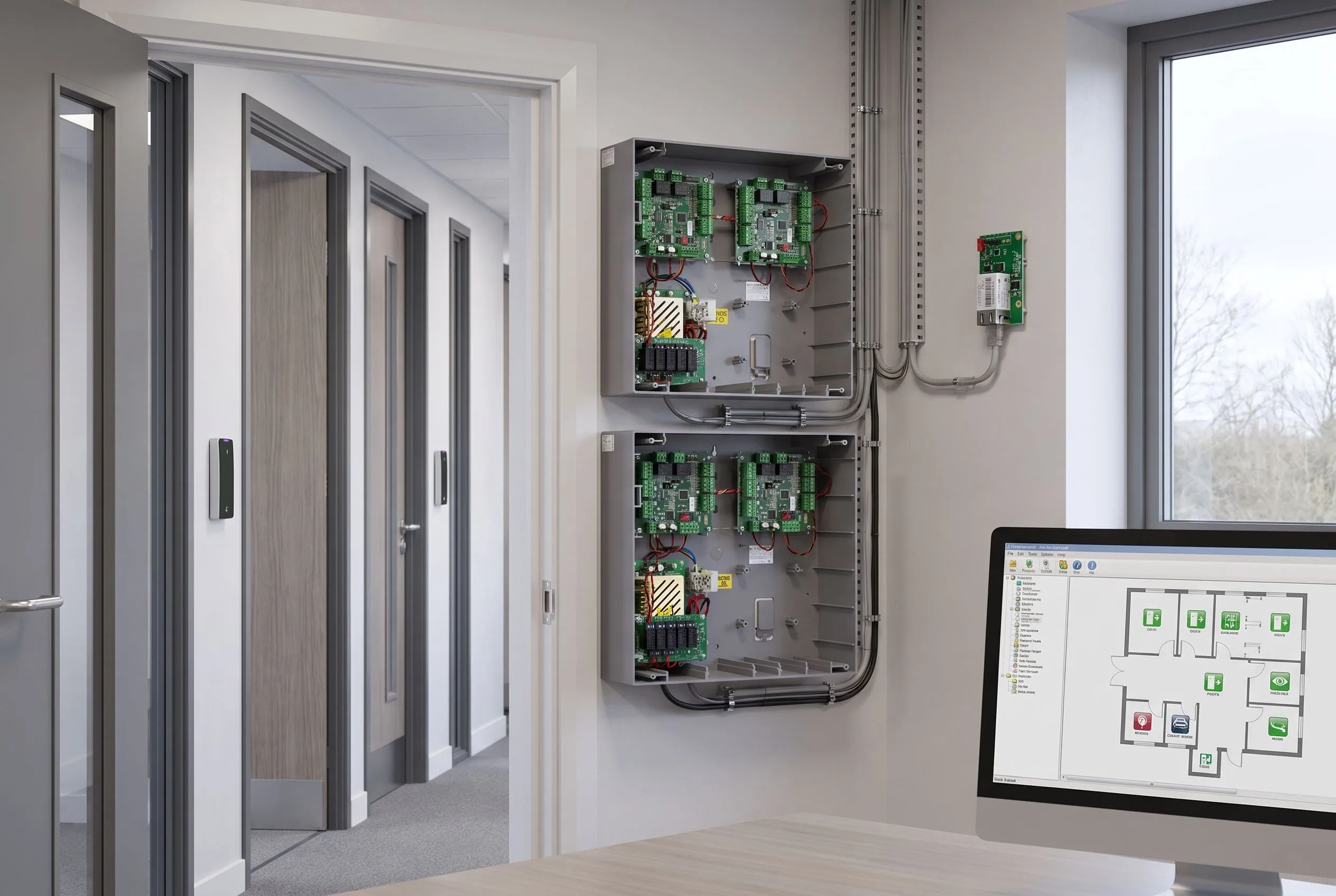

The TCP/IP-220 transforms how access control systems connect to management software, enabling CRC220 and CRC221 controllers to communicate over standard Ethernet networks instead of dedicated RS485 cabling.

For buildings with extensive IT infrastructure, this eliminates the need to run new communication cables—simply connect to the nearest network point and configure the IP address.Multi-building campuses and retrofit installations particularly benefit from the TCP/IP-220.

Universities can connect access controllers across campus via existing LAN infrastructure, while historic buildings avoid disruptive cable routing.

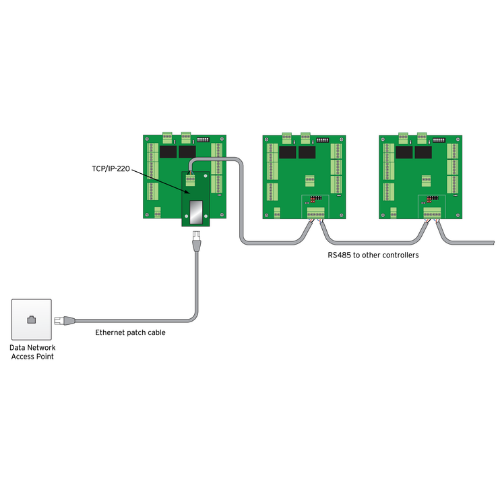

The adaptor's RS485 port allows up to 31 additional controllers to share the same Ethernet connection, creating hybrid networks that optimise cabling costs while maintaining system reliability.

Frequently asked questions

Which controllers are compatible with the TCP/IP-220?

The TCP/IP-220 fits any CRC220 or CRC221 door controller PCB as a daughter board, effectively replacing the standard RS485 communications interface with TCP/IP capability.

How many controllers can share one TCP/IP-220?

One TCP/IP-220 can serve as the network gateway for up to 32 controllers total—the adaptor itself plus up to 31 additional controllers connected via RS485 daisy-chain.

Does the TCP/IP-220 require additional power?

No, the adaptor draws its 5V DC power directly from the host CRC220/CRC221 controller board. Typical current consumption is 230mA.

What network configuration is required?

The adaptor uses standard Ethernet (RJ45) connection. The included device installation software simplifies IP address assignment and network parameters configuration.

Can I mix TCP/IP and RS485-only controllers?

Yes, this is a key benefit. TCP/IP-220 adaptors can be strategically placed at network access points, with RS485 serving controllers in areas without Ethernet drops.
