Vehicle access control for a weighbridge ties every load to the vehicle that carried it. Nedap Transit Ultimate identifies each authorised vehicle from up to 15 metres as it approaches the bridge, so the weighbridge software has the vehicle before the wheels are on the plate, and ANPR Lumo reads the number plates of casual customers against the registered customer list.
We distribute and support both readers as Nedap's certified UK partner, and our engineers have done these projects across UK waste and aggregates sites.
Waste, recycling and aggregates sites depend on identifying the vehicle and the load accurately at the weighbridge. Manual ticketing is slow, error-prone and a frequent source of billing disputes.
Operators want every load tied automatically to the vehicle, the driver, the customer account and the time, with the data flowing into the weighbridge software and the back-office system without rekeying.
A fleet that is identified before it reaches the plate turns round faster. A casual customer who comes once still has to be recognised and billed.
The challenge
The operator reads the plate or asks the driver, finds the account and keys the ticket. It is slow, and every keystroke is a chance for a dispute later.
The answer
Transit Ultimate reads the windscreen tag from up to 15 metres, so the weighbridge software already has the vehicle when the weight is recorded and the ticket is generated without rekeying.
The challenge
A skip hire firm or a householder may come once. There is no tag to read and no account to open.
The answer
ANPR Lumo reads the plate from 2 to 10 metres and checks it against the registered customers, so a one-off visit is ticketed as cleanly as the regular fleet.
The challenge
When a ticket is keyed by hand, the load, the vehicle, the driver and the customer are tied together only as well as the operator managed on the day.
The answer
Each ticket carries the identified vehicle, so every load is traceable and the data reaches the back-office system in one piece. Faster turnaround, accurate billing and far less manual administration.
The challenge
A reader that only talks to one weighbridge package ties the site to that vendor for as long as the hardware lasts.
The answer
Both readers use standard outputs, and integration with standard weighbridge management software is well established, so the operator chooses the software. Where the gate also needs access control, Norpass3 is licence-free.
A weighbridge sees two kinds of vehicle: the authorised fleet that comes every day, and casual customers who may come once. Each is identified in the way that suits it, and both readers hand the vehicle to the same weighbridge software.
Fleet and contract vehicles carry a tag in the windscreen, and Transit Ultimate reads it from up to 15 metres as the vehicle approaches the bridge. The weighbridge software receives the vehicle before the wheels are on the plate, and the ticket is generated as soon as the weight is recorded.
Untagged vehicles, typically casual or one-off customers, are identified by number plate against the registered customer list.
Transit Ultimate reads the windscreen tag from up to 15 metres as the tipper approaches.
The weighbridge software has the vehicle and account before the wheels are on the plate.
No stopping at a kiosk, no card to present.
The weight is recorded and the ticket carries the vehicle, the account and the time.
The bridge is usually where a project starts. The same tag identifies the vehicle at the other points a bulk material site controls, from the gate to the loading station.
The gate opens for the authorised fleet and logs each arrival, and ANPR Lumo handles the casual customer in the same lane.
A reader at the loading point identifies the vehicle, so the right product goes into the right lorry and the load is recorded against it.
A reader on the way out identifies the vehicle for the second weighing, so both weights sit on the same ticket.
Hire fleet and customer vehicles are identified at the yard gate, and each movement is logged against the account.

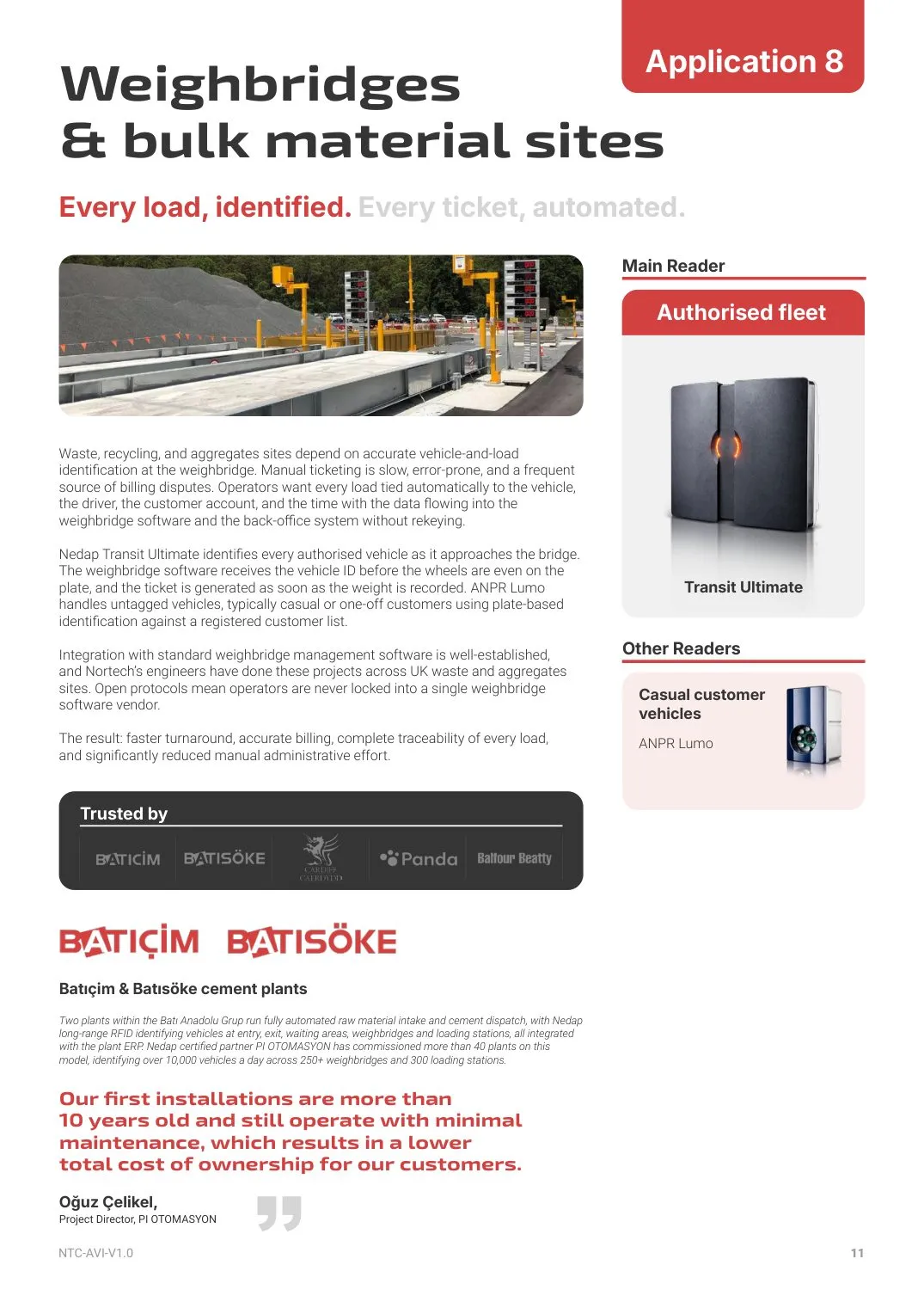

Weighbridges & Bulk Material Sites is one of 11 applications in Vehicle Access, Solved, the Nedap vehicle identification catalogue we publish for the UK and Ireland. Each page shows which reader does the main job, where a second reader picks up untagged or visitor vehicles, and a site where it is in use.
15 pages, PDF. Weighbridges & Bulk Material Sites is on page 11.
Open the applications catalogueCase study
Two plants within the Batı Anadolu Grup run fully automated raw material intake and cement dispatch. Nedap long-range RFID identifies each vehicle at entry, exit, the waiting areas, the weighbridges and the loading stations, all integrated with the plant ERP.
Nedap certified partner PI OTOMASYON has commissioned more than 40 plants on this model, identifying over 10,000 vehicles a day across more than 250 weighbridges and 300 loading stations.
A Nedap installation, commissioned by PI OTOMASYON.
‘Our first installations are more than 10 years old and still operate with minimal maintenance, which results in a lower total cost of ownership for our customers.’
Oğuz Çelikel, Project Director, PI OTOMASYON
Neither reader needs its own software. Transit Ultimate hands the tag number to the weighbridge or access control system as a standard reader, over Wiegand or RS232 as standard with RS422, RS485, TCP/IP and Profibus DP interface boards, and ANPR Lumo sends plate reads over Wiegand, RS485 or Ethernet, with a REST interface for other software. Integration with standard weighbridge management software is well established.
Open protocols mean the operator is never locked into a single weighbridge software vendor. Where the site also wants the gate on an access control system, Norpass3, our licence-free access control software, takes the same readers.
Our engineers have done these projects across UK waste and aggregates sites, and work through the integration with you or your installer before the hardware is specified.
| Reader | Outputs and interfaces | Protection | Datasheet |
|---|---|---|---|
| Transit Ultimate | Outputs and interfaces Wiegand, magstripe and barcode outputs. RS232 as standard, with RS422, RS485, TCP/IP and Profibus DP interface boards | Protection IP66 | Transit Ultimate datasheet |
| ANPR Lumo | Outputs and interfaces Wiegand, RS485 and Ethernet, with a REST interface for other software | Protection IP65 | ANPR Lumo datasheet |
Vehicle access control for a weighbridge identifies each vehicle as it arrives at the bridge and hands its identity to the weighbridge software, so the ticket is tied to the vehicle, the driver, the customer account and the time without the operator keying anything in. The authorised fleet is usually identified by a long-range RFID tag in the windscreen, casual customers by number plate.
Not to be identified. Transit Ultimate reads the windscreen tag from up to 15 metres, so the weighbridge software has the vehicle before the wheels are on the plate and the ticket is generated as soon as the weight is recorded. The driver doesn't wind a window down.
By number plate. ANPR Lumo reads the plate from 2 to 10 metres and the weighbridge software checks it against the registered customer list. A vehicle that isn't on the list stays at the barrier and is dealt with by the weighbridge operator in the usual way.
In most cases, yes. Integration with standard weighbridge management software is well established. Transit Ultimate hands the tag number over as a standard reader, with Wiegand and RS232 as standard and RS422, RS485, TCP/IP and Profibus DP interface boards, and ANPR Lumo sends plate reads over Wiegand, RS485 or Ethernet, with a REST interface for other software. Open protocols mean you are never tied to a single weighbridge software vendor.
Yes. One tag in the windscreen is read at the entrance, the weighbridge, the loading station and the exit, and each read goes to the same system. At the Batıçim and Batısöke cement plants, Nedap long-range RFID identifies vehicles at entry, exit, the waiting areas, the weighbridges and the loading stations, all integrated with the plant ERP.
Transit Ultimate is rated IP66 and ANPR Lumo IP65, so dust and rain are not a problem. Nedap's partner in Turkey reports that its first weighbridge installations are more than ten years old and still operate with minimal maintenance.
It depends on the number of weighbridges and lanes, how many vehicles need tags, whether casual customers are read by ANPR, and the barrier and integration work your installer carries out. Our ANPR system cost guide covers typical camera and installation costs, or ask us for a quote for your site.
Robust long-range reader, based on semi active RFID technology, which enables automatic vehicle identification at…
› View DetailsThe ANPR Lumo is an all-in-one number plate camera, including embedded software, analyser and IR illuminator.
› View DetailsTogether with Nortech’s modular access control panels, Norpass3 access control software provides a high degree of…
› View DetailsEvery weighbridge is different, and every weighbridge package has its quirks. Before the hardware is specified, talk to someone who has done it before.
Our engineers in Cwmbran have done these projects across UK waste and aggregates sites. They will help you scope the application, recommend the reader mix, work through the integration with your weighbridge software, and stay with you through commissioning. When you call, it's an engineer who answers.
