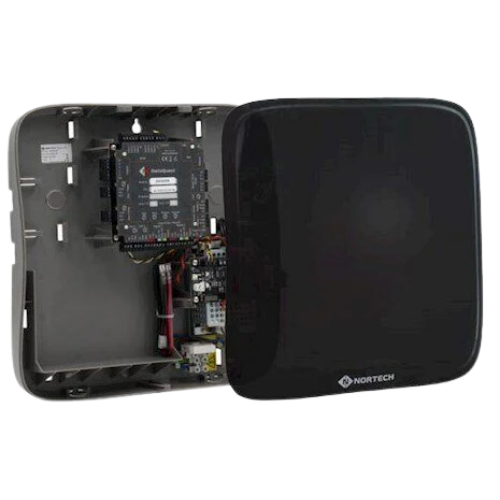

DeltaQuest with PSU in Plastic Enclosure

Name: DeltaQuest with PSU in Plastic Enclosure
Brand: Nortech Control Systems Ltd
SKU: DQ-S2-PH
Availability: InStock

DQ-S2-PH

'Versatility to support access control and membership applications'

The DQ-S2-PH DeltaQuest Universal OEM 2-Door Access Controller is supplied in an attractive housing with integral 12V DC, 3A power supply and intelligent fuse panel. It provides I/O support for PC-based access control or membership software that needs to manage access points. Up to 32 access points that use ID devices such as card readers and keypads can be supported via a single USB port or a TCP/IP network connection.

Request Quote Download Datasheet

Product features & benefits

Each reader control module is provided in an attractive wall mount cabinet and can manage up to two ID devices and operate their associated barriers or turnstiles via robust output relays.

A member presents a card, fob, QR code or wallet pass at a reader. The DeltaQuest module sends the reader's identity and the credential string, for example R1 plus the ID, to the integration layer that connects it to your software, and holds no member data itself. Your software checks the member and answers allow or deny. On allow, DeltaQuest fires the relay for that reader and the turnstile, door or barrier opens. Your platform keeps the entry log.

The DeltaQuest is ideal for use in the leisure industry when combined with third-party membership software.

The DeltaQuest is compatible with all Nortech’s reader technologies and can support many third-party readers and keypads.

Benefits

Supports most reader technologies and output formats
Up to 32 access points can be managed via a single USB port or TCP/IP network connection on the PC
Supports PINs of up to 15 digits from a connected keypad
Simplifies software development by using a simple command structure
Simple, cost-effective installation with no local settings such as DIP switches or jumpers required
Fully configurable via user-friendly software
Compatible with several third-party database/membership management systems
Each reader interface supports Free Exit and an auxiliary output to control card capture, DVR, etc.
Supplied in attractive housing with integral 12V DC, 3A power supply
Intelligent fuse panel provides managed 12V DC power to access devices with power supply monitoring
Your software makes every allow or deny decision: there is no Nortech cloud in the loop and no second member database to keep in sync
Dynamic QR codes from your app work as issued: DeltaQuest passes each code through the instant it is scanned
Existing CRC400 controllers can stay on the same network with no hardware swap

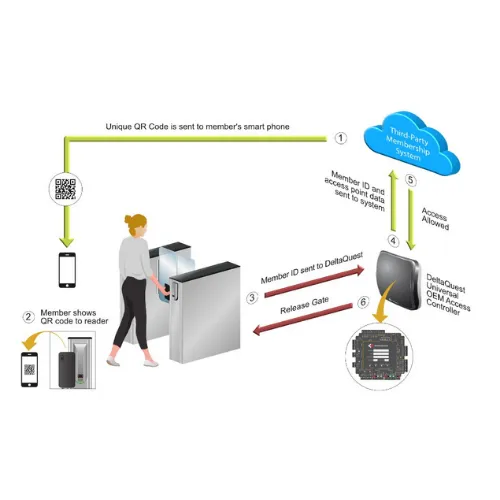

How DeltaQuest integrates with your software

DeltaQuest reads the credential and fires the relay. Every allow or deny comes from your platform. There is no Nortech cloud in the loop and no second member database to keep in sync: your software stays the system of record and keeps the entry log. The enclosed DQ-S2-PH runs the same protocol as the PCB, with its own power supply and fused outputs for the readers.

1
A member presents a credential

A card, fob, QR code, barcode, NFC credential or wallet pass at a reader on the turnstile, door or barrier. Any reader with a standard output works.
2
DeltaQuest sends the reader and the credential to the integration layer

The module sends the reader identity and the credential string, for example R1 plus the ID, over TCP/IP or USB serial to the integration layer on site: a module in your own software or the Nortech DeltaQuest Hub. It holds no member data.
3
Your platform makes the decision

The integration layer passes the request to your API or CRM, which checks membership, payment status and what that member may enter at that location. Entitlement rules and logging stay in your platform.
4
You answer allow, and the gate opens

The integration layer sends your answer back and DeltaQuest fires the relay for that reader, so the turnstile, door or barrier opens. Your platform keeps the entry log.

32 Access points per host connection
2 Readers and relays per DeltaQuest module
64 Characters max from RS232 or RS485 readers
TCP/IP Or USB serial to the host
1992 Designed and built in Cwmbran since

Credential rules

Up to 64 characters from RS232 or RS485 readers
Most integrations use 32 characters or fewer
Letters and digits are both fine
Keypad PINs run to 15 digits

Dynamic QR codes

Your CRM or app generates each code and sets its expiry
Your platform matches it to the member who generated it
Expiry of 10, 30 or 60 seconds, or any period you set
Static barcodes keep working, so move sites one at a time

Readers and gates

Any reader with a Wiegand, Clock & Data, RS232 or RS485 output
QR and wallet-pass readers included
Any turnstile, door or barrier driven by a relay
2 readers and 2 relays per module

On an existing site

CRC400 controllers stay, with no hardware swap
Offline mode, agreed per site at setup
Prefix QR payloads if you issue cards too: the controller does not report the credential type
No Nortech cloud and no second member database

Building the integration yourself? Your team builds against the DeltaQuest command protocol with our documentation and engineering support during build and test. The documentation is free and the operator buys the hardware once. Ask for the protocol documentation and a test controller ›

What connects to DeltaQuest

If a reader outputs Wiegand, Clock & Data, RS232 or RS485, it connects. Each output is a relay your software fires, so the same API call can open a turnstile on one site and a car park barrier on the next.

Readers and inputs

Prox cards and fobs 125kHz cards, key fobs and wristbands
Smart cards MIFARE and DESFire, including printed visitor passes
QR codes and barcodes Static or dynamic codes from your app or a printed ticket
Apple and Google Wallet Phone and watch passes through wallet-ready readers
Bluetooth and mobile Phone-as-key apps through a Bluetooth reader
Keypads and PINs PIN codes of up to 15 digits from a connected keypad
Face and fingerprint Biometric readers with a standard output
ANPR and vehicle tags Number plate cameras and long range tags for car parks
Exit buttons A free-exit input per reader, open for 0.5 to 10 seconds

DeltaQuest module

2 readers and 2 relays per module
Reader inputs: Wiegand, Clock & Data, RS232 or RS485
An exit input and an auxiliary output per reader
Reader power of 12V or 5V DC from the module
Daisy-chain up to 16 modules over RS485, up to 1200m
USB or TCP/IP to the integration layer, up to 32 access points per link

Outputs

Relay Turnstiles and speed gates Tripod turnstiles and glass speed lanes
Relay Car park barriers and gates Rising-arm barriers and sliding or swing gates
Relay Doors Maglocks and electric strikes on staff or visitor doors
Relay Anything on a dry contact Voltage-free changeover rated at 2A at 30V DC, timed by your software
Aux output Card capture units Collect visitor and day passes on the way out
Aux output CCTV and DVR triggers Mark the recording when someone scans

Nortech supplies its own readers and Nedap readers, and many third-party readers with these outputs also connect. Cable lengths and electrical ratings are in the specifications below.

Specifications

Integration

Host connection	TCP/IP or USB serial
Access points per host connection	Up to 32
Readers and relays per module	2
Credential length	Up to 64 characters from RS232 or RS485 readers (32 or fewer typical); letters and digits
Keypad PINs	Up to 15 digits
Reader formats	Wiegand, Clock & Data, RS232 or RS485 (including QR, barcode, NFC and wallet-pass readers)
Message to host	Reader identity and credential string per scan; no member data held on the controller
Offline behaviour	Offline mode, configured per site

Electrical

Supply Voltage	90 to 264VAC
Frequency Range	47 to 63Hz
Max. Current draw	1.6A/115VAC 1A/230VAC
Reader supply	12V DC or 5V DC (200 mA max. @ 12V)

Physical

Dimensions (mm)	312 x 312 x 100 (H x W x D)
Cable Termination	USB: Mini USB type-B socket TCP/IP: RJ45 socket Other: Plug-in terminal blocks
Output relays	Voltage free changeover relay per reader, rated at 2A @ 30V DC. Variable output times driven by software
Request to Exit	Ground activated input per reader, configurable operation time from 0.5 to 10 seconds
Auxiliary Outputs	Open-collector output per reader

Cabling Requirements

PC connection	USB: USB 2.0 A plug to Mini type-B plug lead, or TCP/IP - follow standard data networking recommendations
Master/Slave RS485	Cabling Belden 9729 or equivalent (1200m max)
Reader Cabling	Belden 9536 or equivalent (25m max for RS232 reader, 100m max for C&D or Wiegand reader)

Environmental

Operating temp.	0°C to 50°C
Storage temp.	-20°C to 70°C
Relative humidity	95% non-condensing

Complete Turnkey Access Control for Membership Venues

The DQ-S2-PH provides a ready-to-install solution for leisure operators and system integrators who require rapid deployment without sourcing separate power supplies or enclosures.

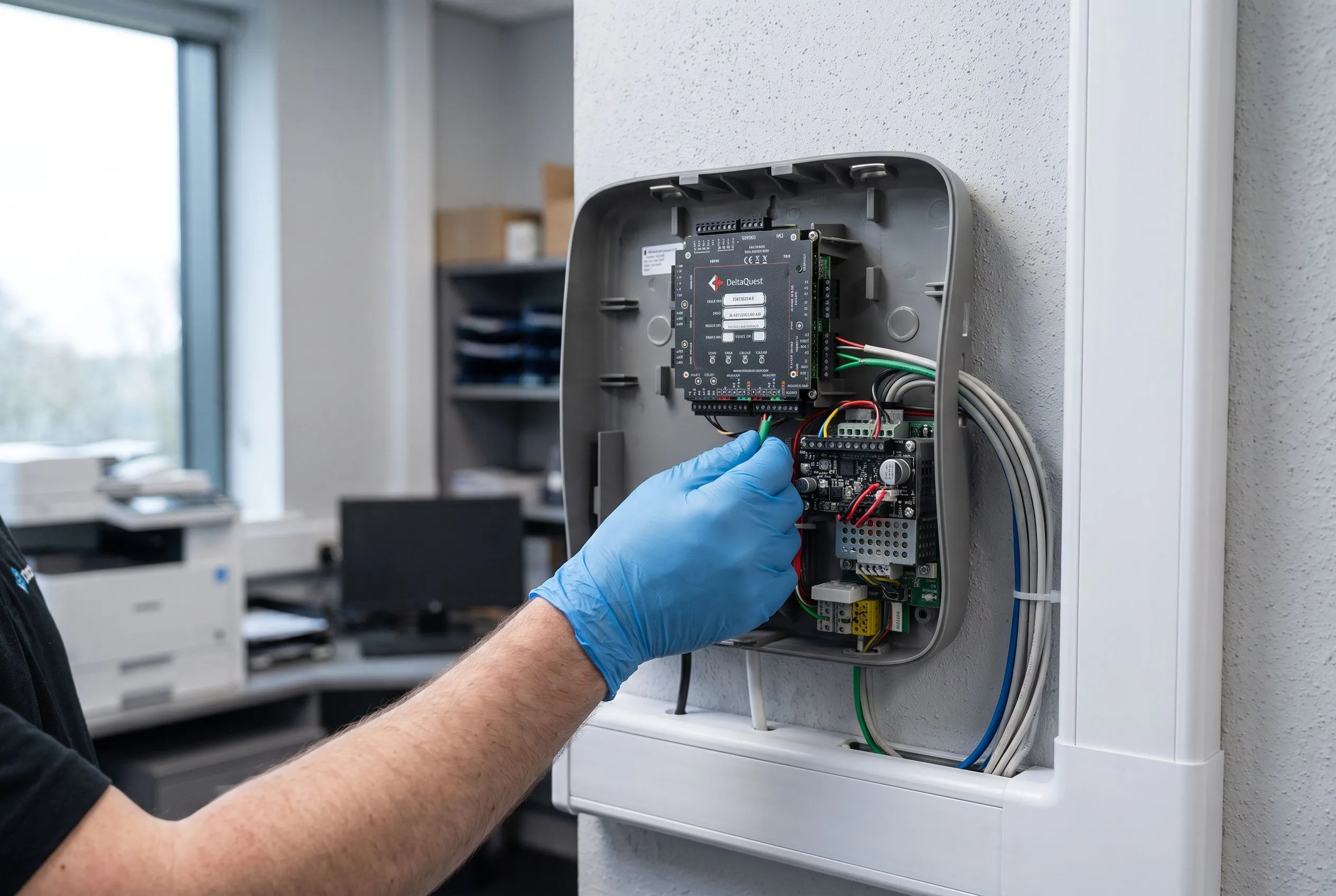

The wall-mounted housing with integrated 12V DC 3A power supply and intelligent fuse panel makes it ideal for fitness centres managing turnstile entry points, swimming pools controlling changing room access, and social clubs overseeing multiple bar or function room entrances.

Venues running Gladstone, Legend, or similar membership platforms can connect the DeltaQuest directly to their existing software via USB or TCP/IP, enabling real-time member validation at each access point. The 312mm × 312mm enclosure fits standard UK electrical mounting points and provides clean cable termination for professional installations.

For multi-site leisure operators or local authority sports facilities, the ability to daisy-chain up to 16 DeltaQuest modules (32 access points) from a single PC connection simplifies central management while keeping each venue's access points responsive even during peak usage periods.

Frequently asked questions

What is included in the DQ-S2-PH package?

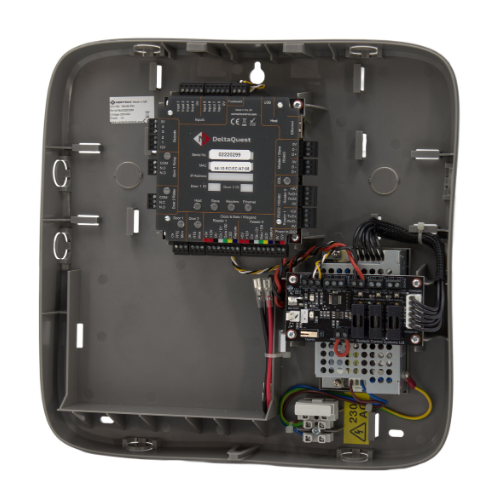

The DQ-S2-PH includes the DeltaQuest 2-reader interface PCB, a 312mm × 312mm plastic wall-mount enclosure, an integrated 12V DC 3A power supply unit, and an intelligent fuse panel for protected power distribution to readers.

What mains voltage does the enclosure version accept?

The integrated power supply accepts 90 to 264VAC at 47 to 63Hz, drawing a maximum of 1.6A at 115VAC or 1A at 230VAC. This makes it suitable for installations in the UK, Europe, and international markets.

How does the intelligent fuse panel work?

The fuse panel distributes 12V DC power to connected access devices such as card readers, with individual fused outputs and power supply monitoring. This protects readers from overcurrent and enables diagnostic visibility of power issues.

Can I upgrade from the PCB version to the enclosure version?

Yes, the DQ-S2-PX PCB can be installed inside the DQ-S2-PH enclosure or sourced separately. Many integrators purchase PCB-only units for custom installations and enclosure versions for standard wall-mount deployments.

What is the maximum cable length between DeltaQuest units?

RS485 communication between master and slave DeltaQuest modules supports cable runs up to 1200m using Belden 9729 or equivalent twisted-pair cabling. Reader cables can extend 25m for RS232 or 100m for Wiegand/C&D formats.

Do we host anything with Nortech?

No. Nortech runs no cloud. DeltaQuest sits at the venue and talks to your software over TCP/IP or USB serial, and your platform stays the system of record. There is no second member database to keep in sync.

What happens if the connection to our software drops?

DeltaQuest has an offline mode. How each access point behaves while the link to your software is down is agreed per site at setup.

Can members use QR codes from our app?

Yes. Your CRM or app generates dynamic QR codes and controls their expiry, whether that is 10, 30 or 60 seconds or another period. DeltaQuest doesn't manage the expiry: it reads the code and passes the string to the integration layer like any other credential, and your platform matches it to the member who generated it. DeltaQuest does not report the credential type, so if you issue cards as well, prefix the QR payload so your platform can tell them apart. Existing static barcodes keep working.

Which readers and turnstiles can we use?

Any reader with a standard output (Wiegand, Clock & Data, RS232 or RS485), including QR and wallet-pass readers, and any turnstile, door or barrier driven by a relay. Each DeltaQuest module runs two readers and two relays, and up to 32 access points sit on one host connection.
